2376
PAWNEE BRAVE
SERVICE
MANUAL
TUBE ASSEMBLY
HOSE
ASSEMBLY,
FLEXIBLE
MASTER
CYLINDER,
RIGHT
VALVE,
PARKING
BRAKE
MASTER
CYLINDER,
LEFT
KNOB,
PARKING
BRAKE
CONTROL
ASSEMBLY, PARKING
BRAKE
TUBE ASSEMBLY
BRAKE
ASSEMBLY
HOSE
ASSEMBLY,
FLEXIBLE

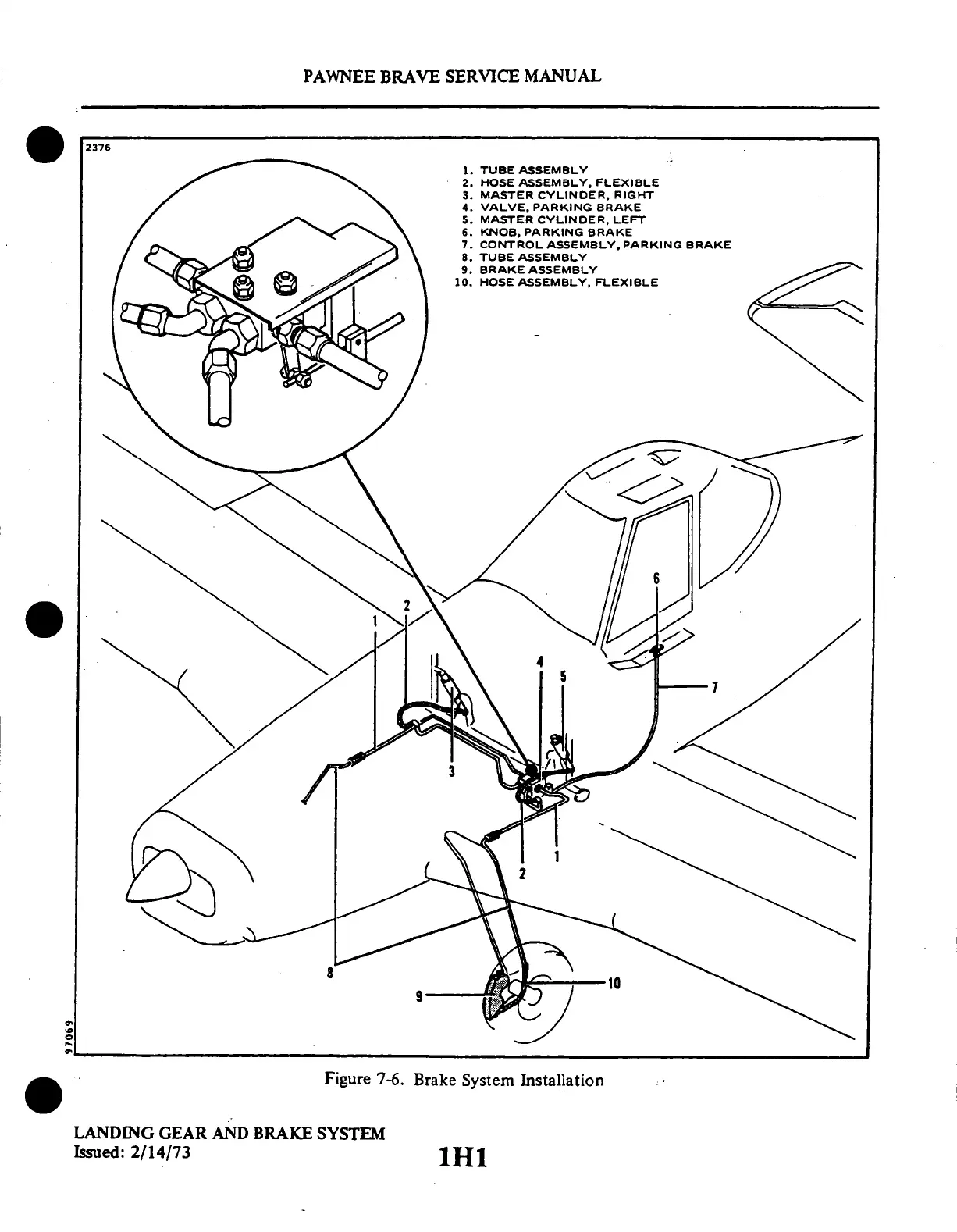

Figure 7-6. Brake
System Installation
LANDING
GEAR
AND BRAKE
SYSTEM
Issued:
2/14/73
1H1
