Piper TOMAHAWK User Manual

*Loading graph is shown with the seats in the fourth notch from the most
forward position. If C.G. falls near the forward or aft limit, occupant seat
positions are important; and moments should be calculated by multiplying
pilot and passenger weight by appropriate arm aft datum (see Figure
6-14), rather than determined by the loading graph.

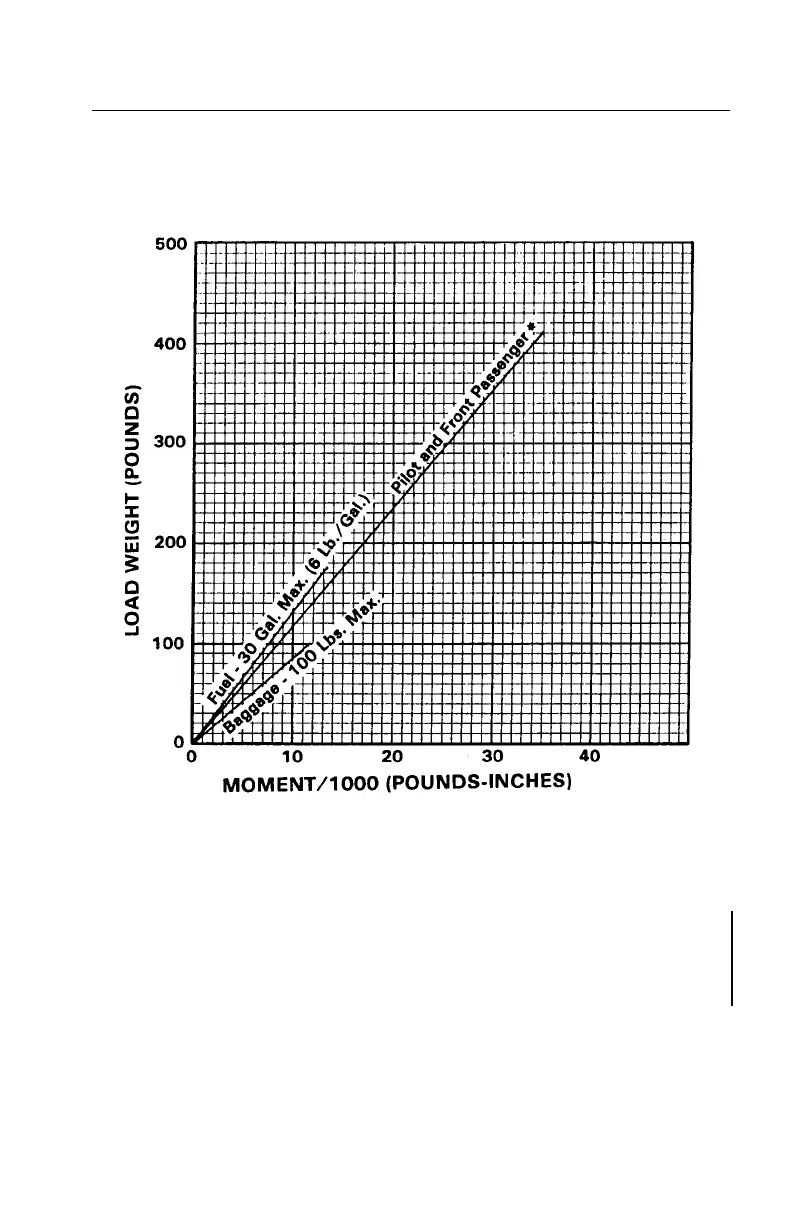

LOADING GRAPH
Figure 6-15
PIPER AIRCRAFT CORPORATION SECTION 6
PA-38-112, TOMAHAWK WEIGHT AND BALANCE
ISSUED: JANUARY 20, 1978 REPORT: 2126
REVISED: MARCH 1, 1979 6-11
*Loading graph is shown with the seats in the fourth notch from the most
forward position. If C.G. falls near the forward or aft limit, occupant seat
positions are important; and moments should be calculated by multiplying
pilot and passenger weight by appropriate arm aft datum (see Figure
6-14), rather than determined by the loading graph.
LOADING GRAPH
Figure 6-15
PIPER AIRCRAFT CORPORATION SECTION 6
PA-38-112, TOMAHAWK WEIGHT AND BALANCE
ISSUED: JANUARY 20, 1978 REPORT: 2126
REVISED: MARCH 1, 1979 6-11

Piper TOMAHAWK Specifications

General

Manufacturer	Piper Aircraft
Model	PA-38 Tomahawk
Role	Trainer aircraft
First flight	1977
Number built	2, 484
Engine type	Lycoming O-235-L2C
Horsepower	112 hp (84 kW)
Max takeoff weight	1, 670 lb (757 kg)
Wingspan	34 ft 0 in (10.36 m)
Height	9 ft 0 in
Range	500 miles
Rate of Climb	720 ft/min
