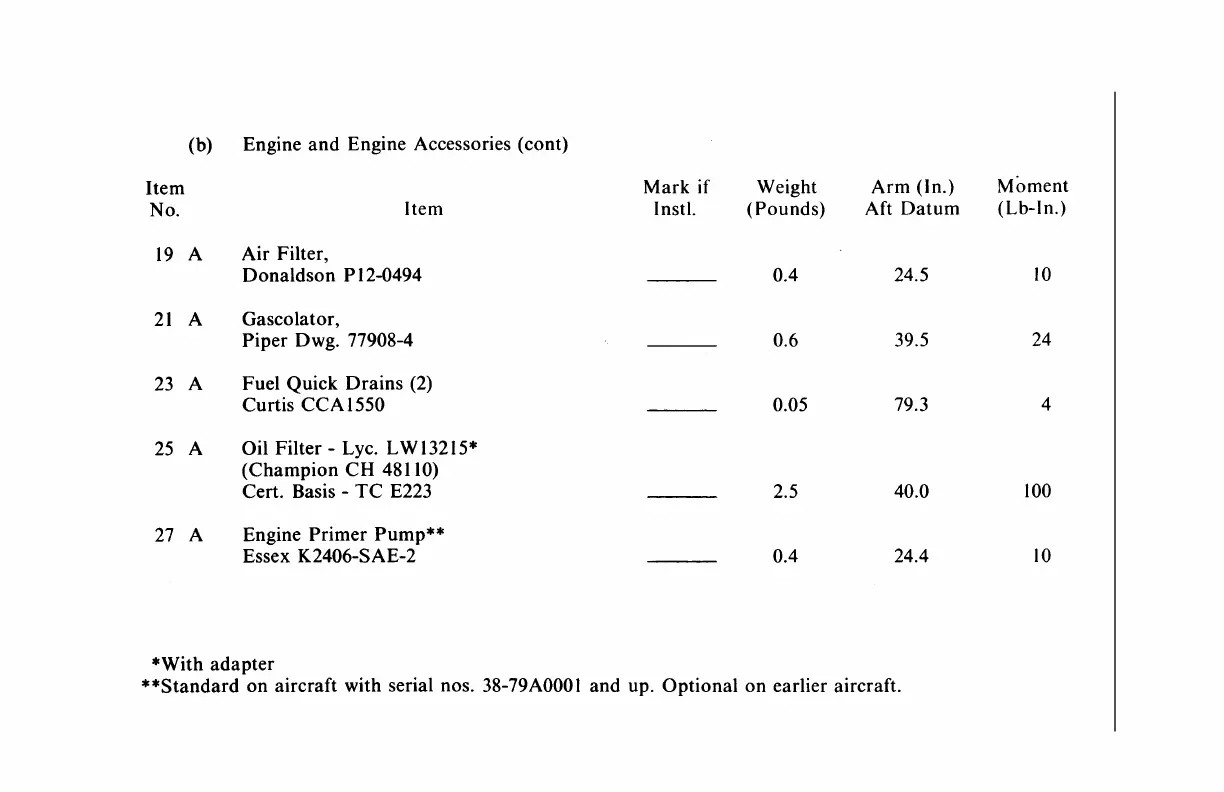

PIPER AIRCRAFT CORPORATION SECTION 6
PA-38-112, TOMAHAWK WEIGHT AND BALANCE
ISSUED: JANUARY 20, 1978 REPORT: 2126
REVISED: MARCH 1, 1979 6-15
PIPER AIRCRAFT CORPORATION SECTION 6
PA-38-112, TOMAHAWK WEIGHT AND BALANCE
ISSUED: JANUARY 20, 1978 REPORT: 2126
REVISED: MARCH 1, 1979 6-15
(b)
Engine
and
Engine Accessories (cont)
Item
Mark if
Weight
Arm (In.)
Moment
No.
Item Instl.
(Pounds) Aft
Datum
(Lb-In.)
19
A
Air Filter,
Donaldson P 12-0494
0.4
24.5
10
21
A
Gascolator,
Piper Dwg. 77908-4 0.6
39.5
24
23
A
Fuel Quick Drains
(2)
Curtis CCA 1550 0.05
79.3
4
25
A
Oil Filter - Lyc. L W 13215*
(Champion
CH
48110)
Cert. Basis -
TC
E223
2.5
40.0
100
27
A
Engine Primer Pump**
Essex K2406-SAE-2
0.4
24.4
10
*With adapter
**Standard
on
aircraft with serial nos.
38-79AOOOI
and up. Optional on earlier aircraft.
