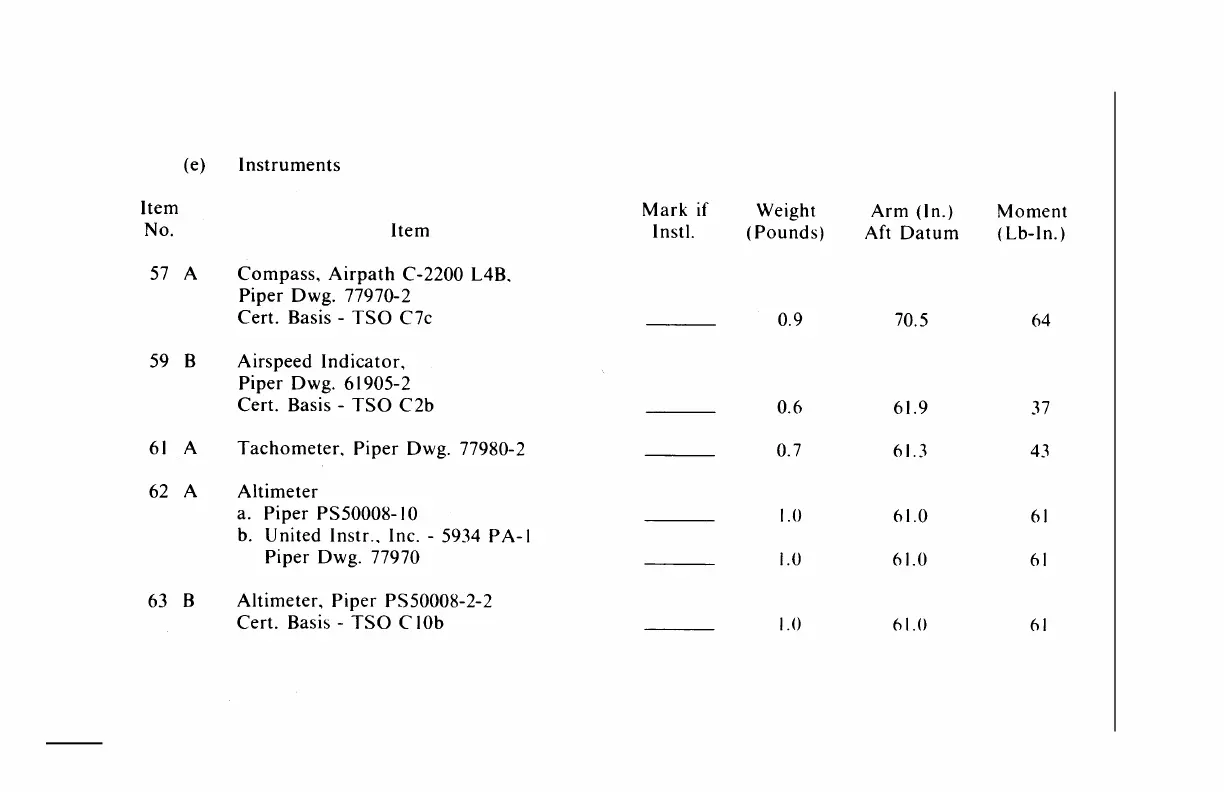

PIPER AIRCRAFT CORPORATION SECTION 6
PA-38-112, TOMAHAWK WEIGHT AND BALANCE
ISSUED: JANUARY 15,1981 REPORT: 2126
6-17b
PIPER AIRCRAFT CORPORATION SECTION 6
PA-38-112, TOMAHAWK WEIGHT AND BALANCE
ISSUED: JANUARY 15,1981 REPORT: 2126
6-17b
(e)
Instruments
Item
Mark
if
Weight
Arm
(In.)
Moment
No.
Item
Instl.
(
Pounds)
Aft
Datum
(Lb-In. )
57
A
Compass,
Airpath
C-2200
L48.
Piper Dwg. 77970-2
Cert. Basis -
TSO
C7c
0.9 70.5
64
59 B Airspeed
Indicator,
Piper Dwg. 61905-2
Cert. Basis -
TSO
C2b
0.6
61.9
37
61
A
Tachometer,
Piper
Dwg. 77980-2
0.7
61.3
43
62
A
Altimeter
a.
Piper
PS50008-10
1.0
61.0
61
b.
United Instr.. Inc. - 5934
PA-I
Piper Dwg. 77970
1.0
61.0
61
63
B
Altimeter,
Piper
PS50008-2-2
Cert. Basis -
TSO
C
lOb
1.0
61.0
61
