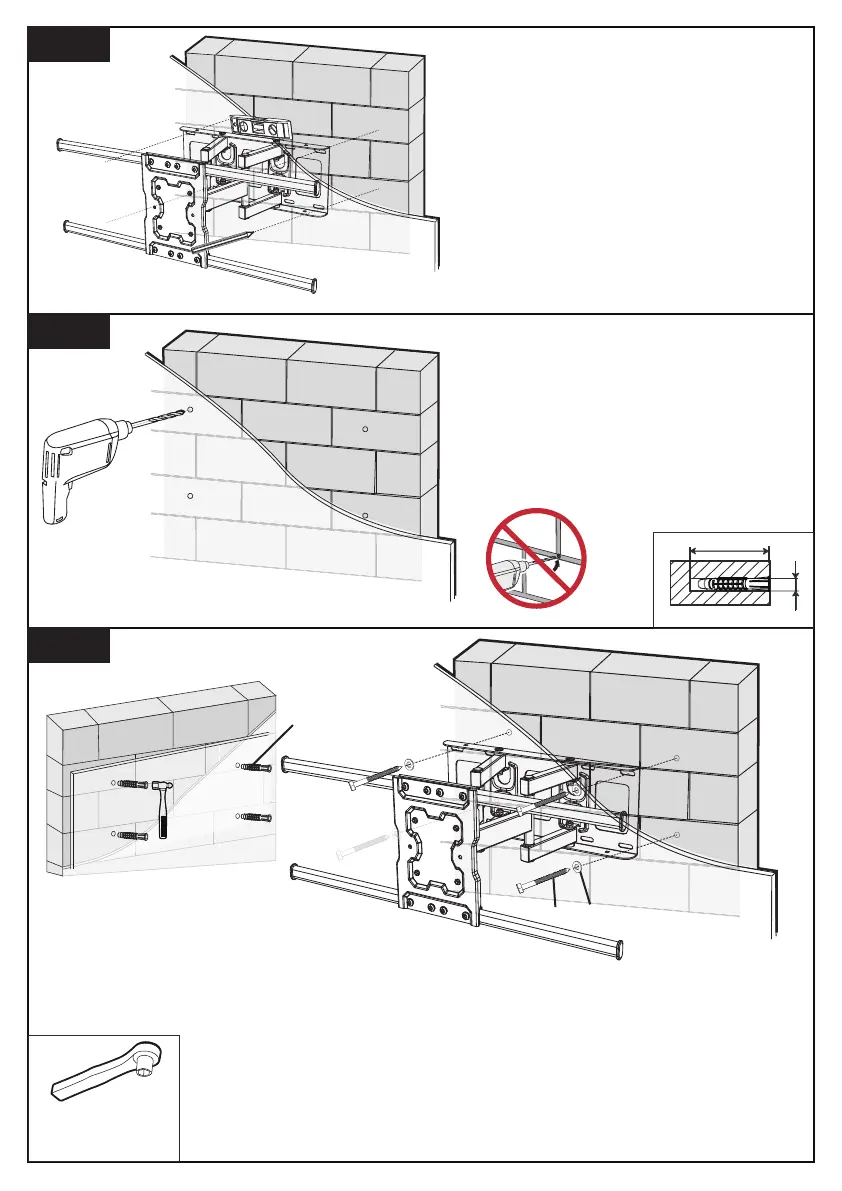

Position the arm assembly/wall
plate at your desired height, level
the wall plate and mark the pilot
hole locations.
Drill 4 pilot holes using a 10mm
diameter drill bit. Make sure the
depth is not less than 65mm. Never
drill into the mortar between blocks.
ø10mm
65mm
Use the hammer to knock
anchors [A2] into the wall.
Install the arm assembly/wall plate using lag bolts [A1],
washers [A3] and anchors [A2]. Be sure the anchors [A2] are
seated flush with the concrete surface. Tighten the lag bolts
[A1] only until the washers [A3] are pulled firmly against the
wall plate. DO NOT over-tighten the lag bolts [A1].
5B-1
5B-2
5B-3
13mm
Socket Wrench
(Not included)
A1
A3
A2
