7
13mm
Socket Wrench

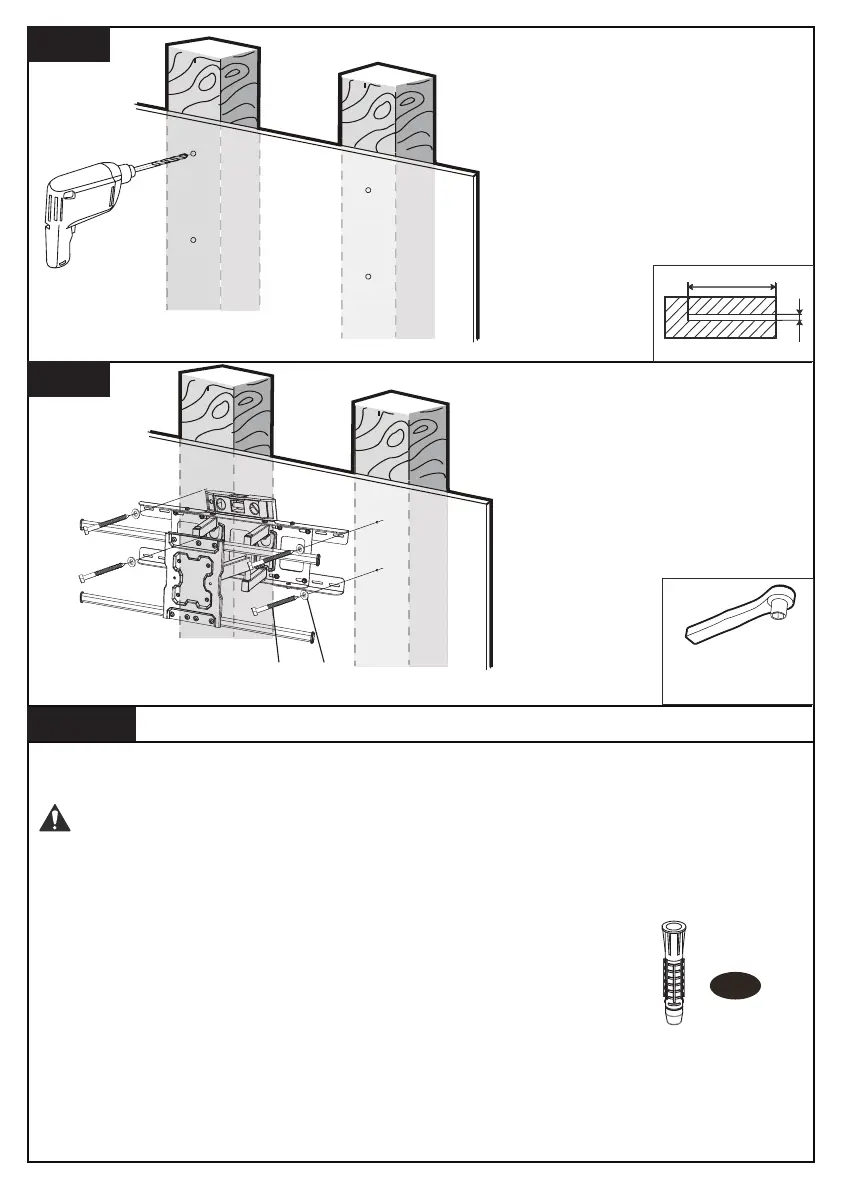

Step 5B
Solid Concrete or Concrete Block Option
WARNING:
ø5mm
60mm
Drill 4 pilot holes using a 5 mm
diameter drill bit. Make sure the
depth is not less than 60mm.
Install the arm assembly/wall
plate using lag bolts [A1] and
washer [A3]. Tighten the lag bolts
[A1] only until the washers [A3]
are pulled firmly against the wall
plate.
●Avoid potential personal injury or property damage! DO NOT over-tighten the
lag bolts [A1]. Tighten the lag bolts [A1] only until the washers [A3] are pulled
firmly against the wall plate.
●Ensure the arm assembly/wall plate is securely fastened to
the wall before continuing on to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount the arm assembly/wall plate directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
Wall Anchor
A2
5A-4
5A-5
A3A1
(Not included)
● The Extensions [07] are not necessary for this step.
To Next Page
