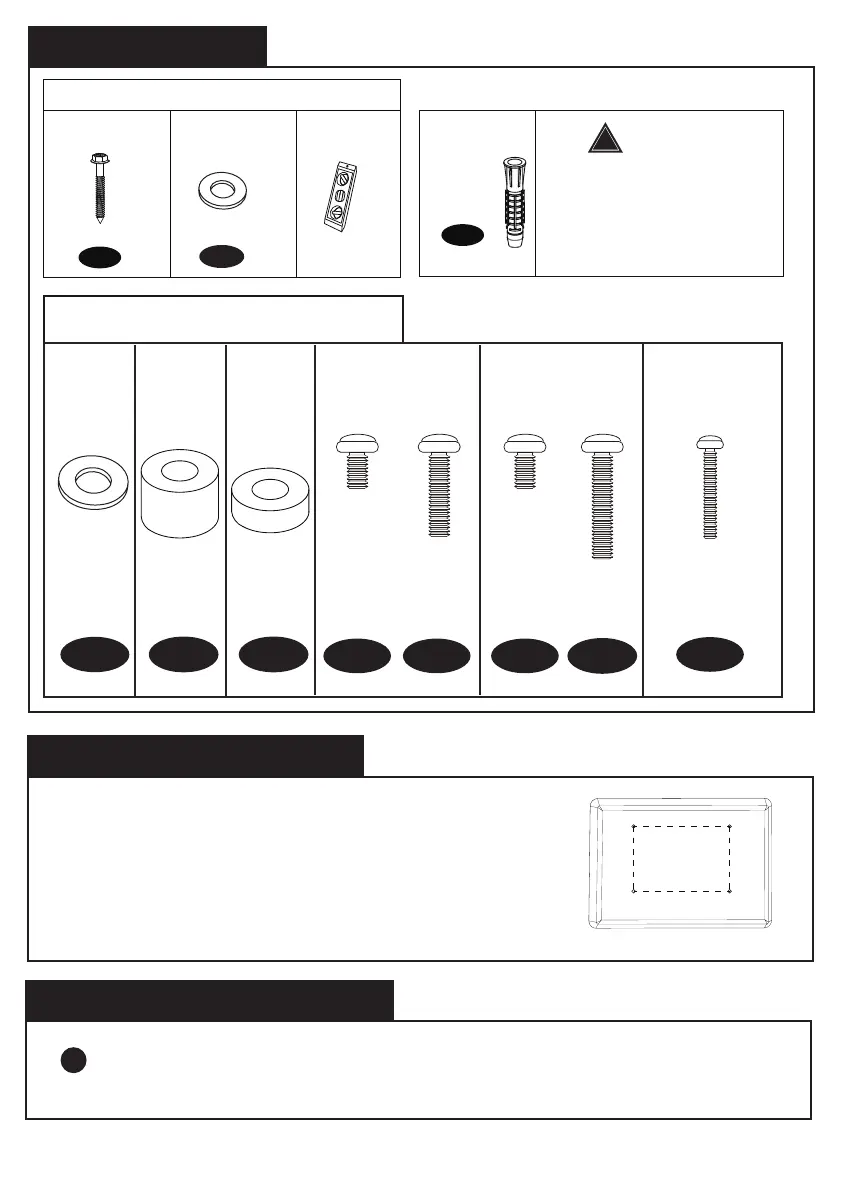

Hardware Included
TV Screws / Washers
Washers
Ø8mm
x4
A2
Philips Screws
M6 x 15mm
M6 x 30mm
Philips Screws
M4 x 30mm
Spacers
L10mm
x4
x4x4
Philips Screws
M8 x 15mm
M8 x 45mm
x4
x4
x8
E1
F
D1 D2
E2
B2
Spacers
L5mm
x8
C
Washers
Ø6mm
M4-5-6
x4
B1
Level
Hardware (Wall/Product)
CAUTION!
M8X65mm
Lag Bolts
x4
A3
x4
A1
Wall
Anchor
!
These anchors are for
concrete or brick walls
ONLY. DO NOT use them
in drywall or wood studs.
Step 1-1 Measure VESA
Measure the distance between the holes located at the back of
your TV (these measures may form the shape of a square, or a
rectangle) and check that these taken measures are within the
VESA (*) range for this wall mount. (*) VESA: International
standard established by the TV manufacturers used to
determine if LCD/LED TVs are compatible with wall mounts.
Width
Height
Step 1-2 Select TV hardware
Bolt diameter: hand thread bolts into threaded inserts on he back of TV to determine the
correct bolt diameter(M4, M6, M8)
