Pipistrel ALPHA Trainer - Cockpit Controls; Typical Instrument Panel

ALPHA Trainer www.pipistrel-aircraft.com
REV. 0
POH-162-00-40-050
Cockpit controls
ALPHA Trainer cockpit levers are divided into two groups:
Individual control levers: pilot stick and rudder pedals
Dual control levers: throttle lever, handbrake lever, choke lever, flap lever, trim lever, door handles,
battery disconnection lever/ring and emergency parachute release handle.

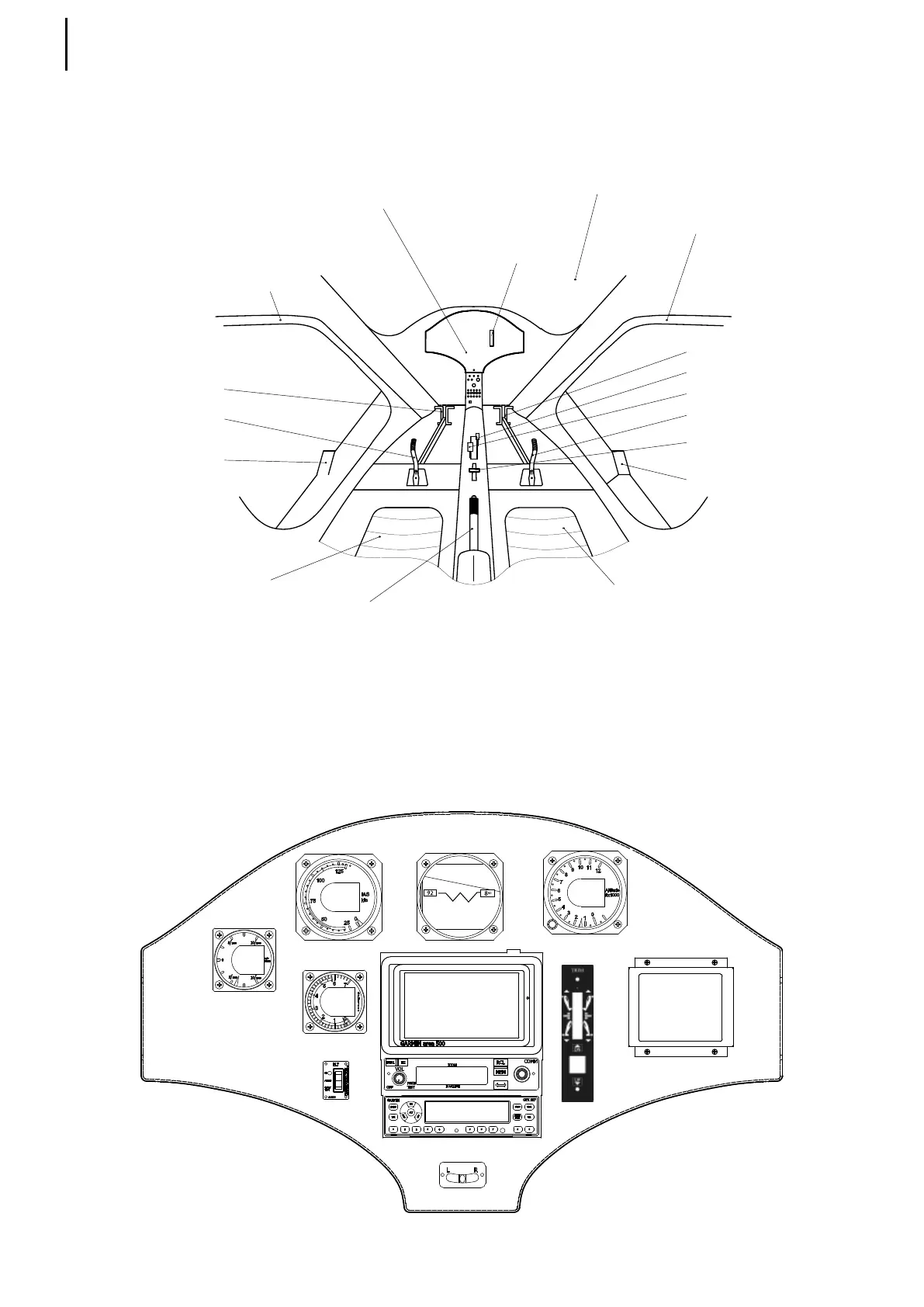

Typical Instrument panel
RIGHT SEAT
FLAP LEVER
LEFT SEAT
RIGHT PEDALS
THROTTLE LEVER
RIGHT CONTROL STICK
RIGHT DOOR LEVER
LEFT DOOR
INSTRUMENT PANEL
TRIM SWITCH
FRONT LEXAN
RIGHT DOOR
LEFT PEDALS
LEFT CONTROL STICK
LEFT DOOR LEVER
CHOKE LEVER
HAND BRAKE LEVER
