18
EN
ENGLISH
32

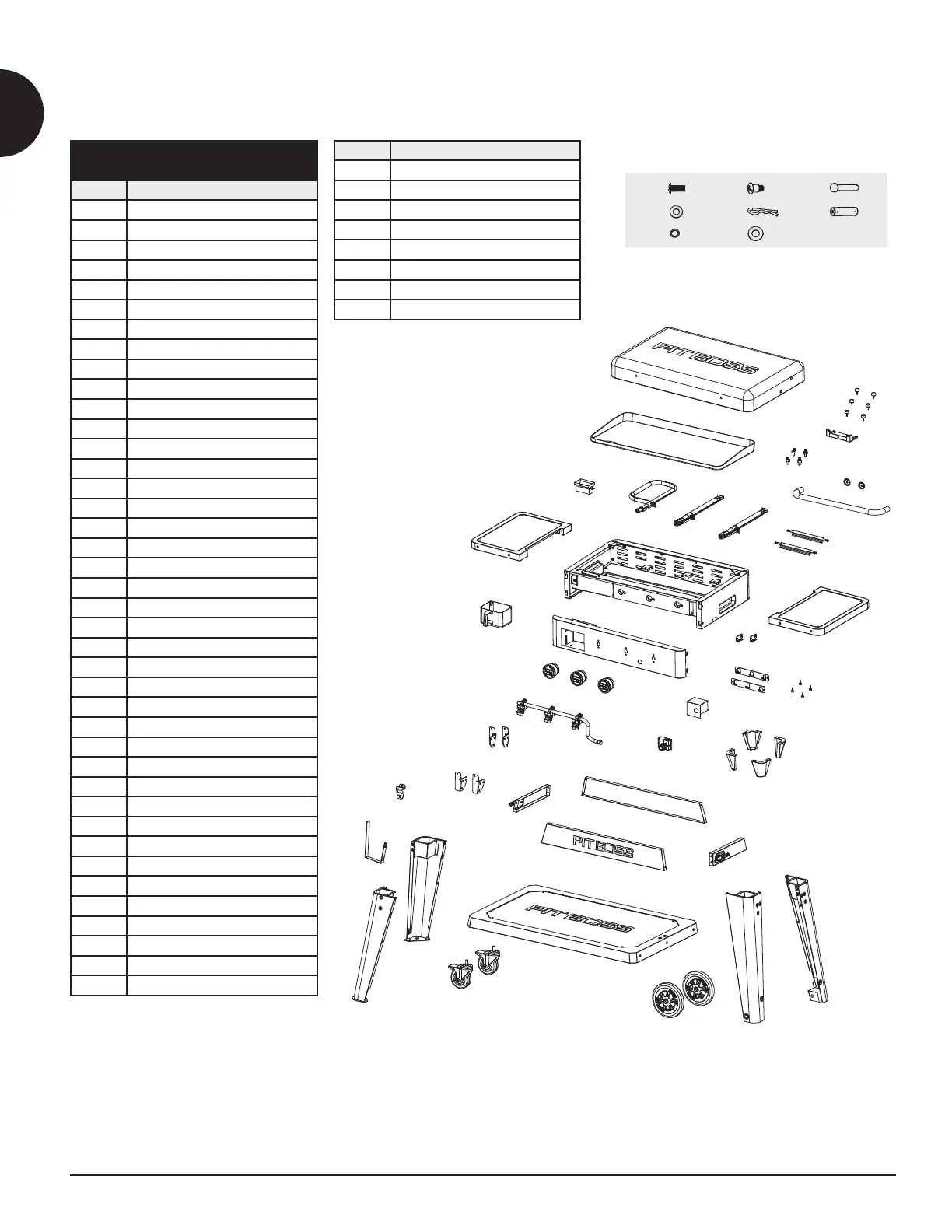

Part# Description
1 Lid (x1)
2 Lid Support Rubber (x6)
3 Lid Support (x1)
4 Hot Plate (x1)
5 Hot Plate Leg Screws (x4)
6 Lid Handle Bezel (x2)
7 Lid Handle (x1)
8 Grease Run Out (x1)
9 P Burner (x1)
10 Middle Burner (x1)
11 Right Burner (x1)
12 Burner Crossover (x2)
13 Side shelf - Left (x1)
14 Firebox Assembly (x1)
15 Side Shelf - Right (x1)
16 Latch Hook (x2)
17 Grease Cup (x1)
18 Firebox Control Panel (x1)
19 Side Shelf Hook Panel (x2)
20 Side Shelf Rubber (x4)
21 Control Knob (x3)
22 Igniter Heat Shield (x1)
23 Igniter (x1)
24 Firebox Feet (x4)
25 Valve Assembly (x1)
26 Side Shelf Bracket - Left (x2)
27 Side Shelf Bracket - Right (x2)
28 Cart Side Panel - Left (x1)
29 Cart Back Panel (x1)
30 Cart Front Panel (x1)
31 Cart Side Panel - Right (x1)
32 Bottle Opener (x1)
33 Paper Towel Hook (x1)
34 Support Leg for Caster - Back (x1)
35 Support Leg for Caster - Front (x1)
36 Support Leg for Wheel - Front (x1)
37 Support Leg for Wheel - Back (x1)
38 Bottom Shelf (x1)
39 Locking Caster (x2)
40 Wheel (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice.
28
31
33
34
35
36
37
38
39
40
1
2
3
4
6
7
8
9
10
11
16
13
14
15
17
18
19
20
21
22
23
24
25
26
27
30
29
32
5
12
Part# Description
A Screw (x37)
B Washer (x16)
C Locking Washer (x16)
D Screw (x4)
E Wheel Cotter Pin (x2)
F Wheel Washer (x2)
G Wheel Axle Pin (x2)
H Battery (x1)
