Pit Boss Ultimate Griddle Series User Manual

20
EN
ENGLISH
NOTE: Due to ongoing product development, parts are subject to change without notice.
52

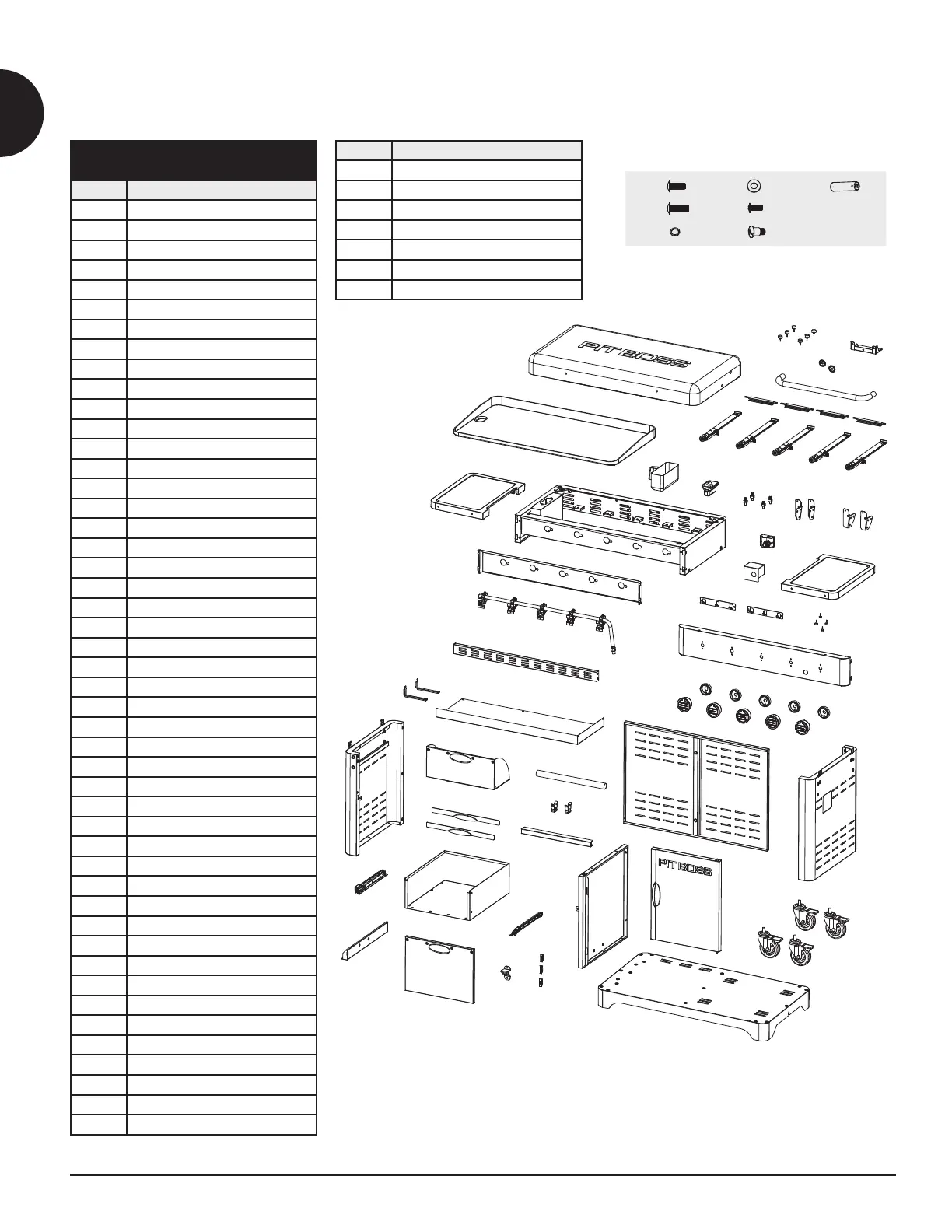

Part# Description
1 Lid (x1)
2 Lid Support Rubber (x6)
3 Lid Support (x1)
4 Lid Handle Bezel (x2)
5 Lid Handle (x1)
6 Hot Plate (x1)
7 Burner Crossover (x4)
8 Burner (x5)
9 Grease Cup (x1)
10 Grease Run Out (x1)
11 Hot Plate Leg Screws (x4)
12 Side Shelf Bracket - Left (x2)
13 Side Shelf Bracket - Right (x2)
14 Side shelf - Left (x1)
15 Firebox Assembly (x1)
16 Igniter (x1)
17 Igniter Heat Shield (x1)
18 Side Shelf - Right (x1)
19 Front Heat Shield (x1)
20 Valve Assembly (x1)
21 Cart Front Panel (x1)
22 Side Shelf Hook Panel (x2)
23 Side Shelf Rubber (x4)
24 Firebox Control Panel (x1)
25 Control Knob Base (x5)
26 Control Knob (x5)
27 Heat Shield Bracket (x2)
28 Heat Shield Panel (x1)
29 Cart Back Panel (x1)
30 Cart Side Panel - Right (x1)
31 Cart Side Panel - Left (x1)
32 Swing Drawer (x1)
33 Drawer Handle (x2)
34 Paper Towel Bar (x1)
35 Stop Block (x2)
36 Drawer Support Bar (x1)
37 Drawer Rails - Left (x1)
38 Rail Bracket (x1)
39 Drawer (x1)
40 Drawer Front (x1)
41 Drawer Rails - Right (x1)
42 Bottle Opener (x1)
43 Magnetic Buckle (x3)
44 Cart Partition (x1)
45 Cabinet Door (x1)
46 Cart Bottom (x1)
47 Locking Caster (x4)
30
33
34
36
37
38
39
40
41
44
42
43
45
46
47
1
2
3
4
5
6
8
9
10
11
12
13
14
18
15
16
17
19
20
21
22
23
24
25
26
27
28
29
32
31
35
7
29
32
33
35
36
37
38
39
40
43
41
42
44
45
46
1
2
3
4
5
6
7
8
9
10
11
12
13
17
14
15
16
18
19
20
21
22
23
24
25
26
27
28
31
30
34
Part# Description
A Screw (x54)
B Screw (x2)
C Locking Washer (x14)
D Washer (x14)
E Screw (x14)
F Screw (x6)
G Battery (x1)
  
 
 

Pit Boss Ultimate Griddle Series Specifications

General

Number of Burners	4
Fuel Type	Propane
Construction Material	Steel
Material	Steel
Griddle Material	Cold-rolled steel
