BEFORE SERVICING, REFER TO PAGE 3 AND 4 OF THIS DOCUMENT FOR IMPORTANT NOTICES
9 L22-405

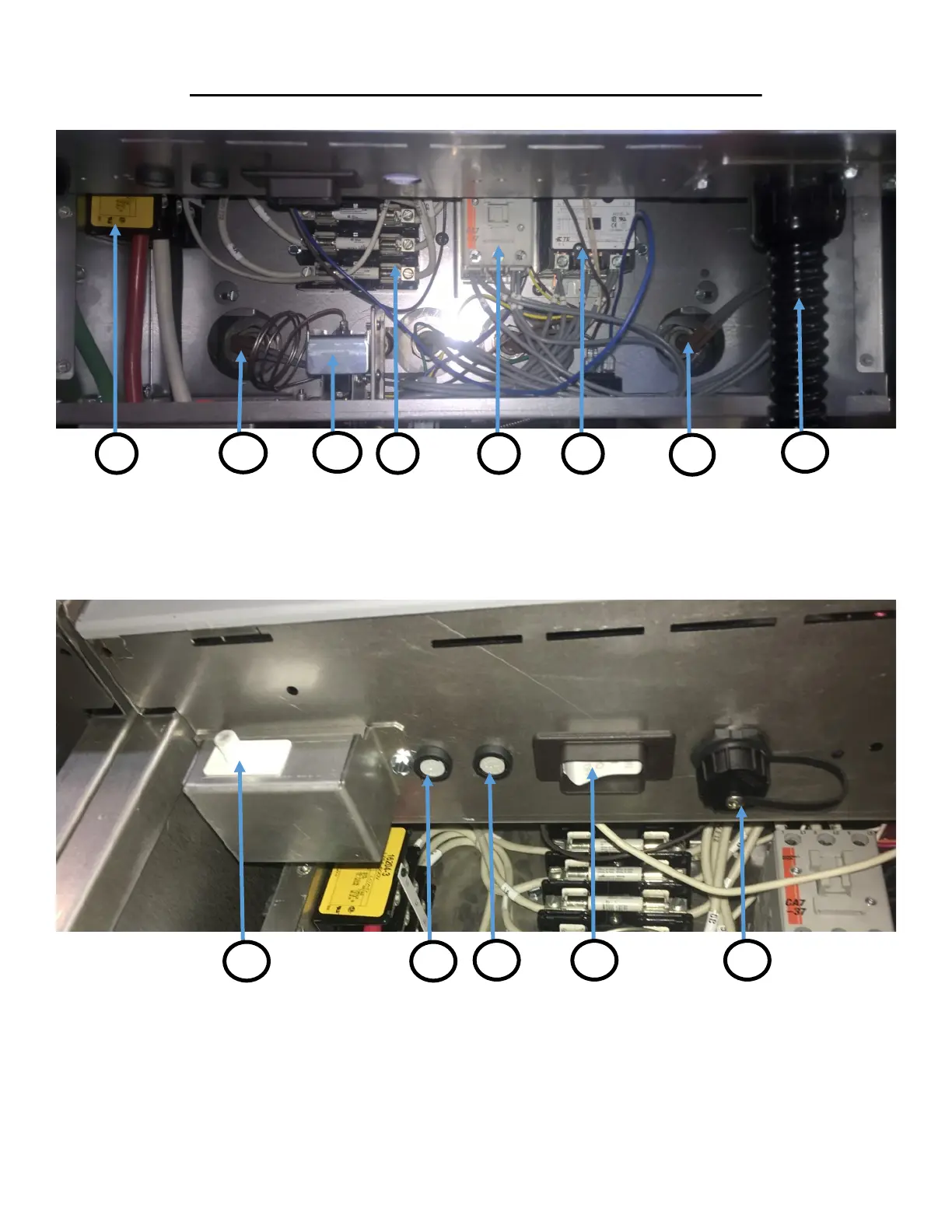

COMPONENT IDENTIFICATION (CONTINUED)
6. Main Power Terminal Block (TB1)
7. 40 Amp Fuse Quanty 6 (FB1, FB2)
8. Heat Demand Contactor (K11)
9. Safety (Side On) Contactor (K10)
10. Element (HTR1, HTR2)
11. Hi-Limit Switch (HL1)
12. Spinal Tap Conduit
13. Door Switch*
14. AC Fuse (250V 2.5A Time Delay)* (F3)
15. DC Fuse (250V 4A Time Delay)* (F4)
16. Filter Pump Circuit Breaker* (CB1)
17. Remote USB Port
*Only found in cabinet with lter pan.
6
12 11
10
1
9 8 7
17 16 15
14 13
Figure 4
Figure 5
