Pittsburgh 63397 - Lift Setup Procedures; Bleeding the Hydraulic System; Adding Hydraulic Oil

Page 5<&(%$*4.8"4,7%K'*#$"&8#L%/7*,#*%4,77%HMNNNMNIIMOPQP1Item 63397
?@<6ARST6;@ACSED@CEA6E@EU6 ?6AFT
G"2$%?*$'/
1. Loosen the Handle Set Screw (48) located on
Handle Socket (50) (turn counterclockwise).
Insert the Handle (51) into the Handle

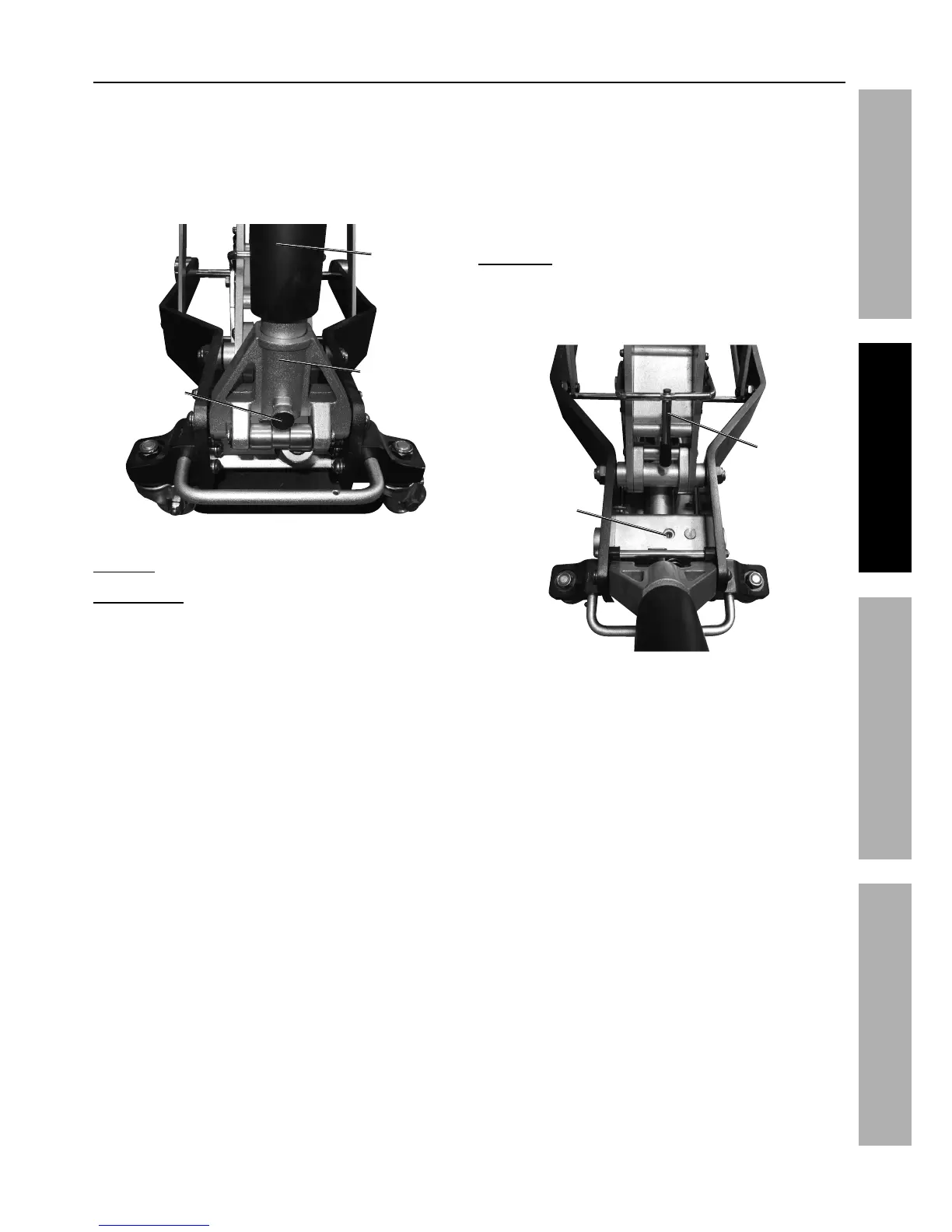

Socket. ?**%<"3'(*%X-%B,897*%?*$M'/1
2. Tighten the Handle Set Screw
(turn clockwise) securely.
B,897*%
6RFNHW
B,897*%?*$%
6FUHZ
+DQGOH
<"3'(*%X-%%B,897*%?*$M'/
X7**9"83
CDTS;A@EA\ Before first use, check for
proper hydraulic oil level in the Hydraulic Power
Unit (36). Thoroughly test the Lift for proper
operation prior to its actual use. If the Lift appears
not to be working properly, it may be necessary
to bleed its hydraulic system of excess air.
1. Turn the Handle (51) counterclockwise
to open the Release Valve.
2. Pump the Handle quickly several times
to purge air from the system.
3. Turn the Handle clockwise to
close the Release Valve.
4. Test the Lift several times for proper operation
before attempting to lift a load. If, after bleeding,
the Lift still does not appear to be working
properly, do not use the Lift until it has been
repaired by a qualified service technician.
@99"83%S"7
1. Remove the Oil Fill Screw on the
top of the Hydraulic Power Unit (36).
?**%<"3'(*%U-%S"7%<"77%?4(*)1
S"7%<"77%
?4(*)
B*"3.$%
G&4J%
B,897*
<"3'(*%U-%%S"7%<"77%?4(*)
2. Add high grade hydraulic oil (sold separately)
into the oil fill hole slowly until the oil
reaches the bottom of the threads.
3. Replace the Oil Fill Screw.
