Measure From Here
1
2
5
3
4

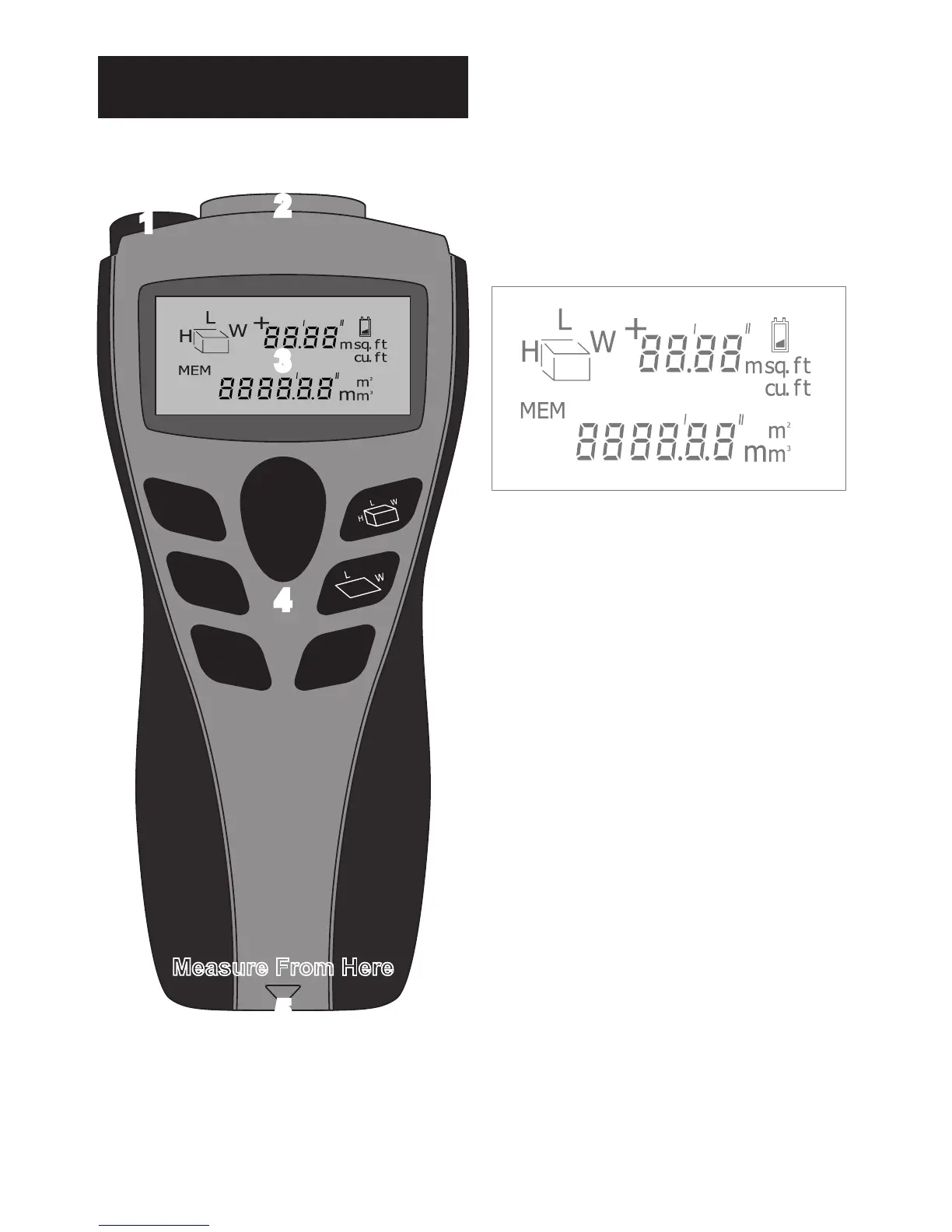

Figure A: Components
1. Laser Opening:
Laser light comes from this opening
during use. Point away from eyes.
2. Sensor:
This measures the location
aimed at with the laser.
Do not cover during use.
3. Display:
a
d
c
b
f
e
Figure B: Display
a. Area/Volume:
Shows whether area or volume
is being measured, and
what part is being measured
(Length, Width, or Height).
b. Addition:
A + here means that the
next measurement will be
added to the current one.
c. Current Result:
The distance last measured or
currently being measured.
d. Battery Indicator:
The estimated battery charge level.
See “Battery Installation /
Replacement” on page 3.
e. Memory:
MEM means a measurement
is stored in memory.
f. Total Result:
Total area, volume, or
result of addition.
