13.
MOUNTING SOLUTION GUIDE
Your PIVOT case is compatible with a variety of patented PIVOT
Mounting Systems. Before connecting your PIVOT case to the
mount, secure the mount in its desired location and adjust it to the
desired orientation and tension. Position the mounting plate to be
parallel to the case during installation, then connect the case to the
mount following the steps below:

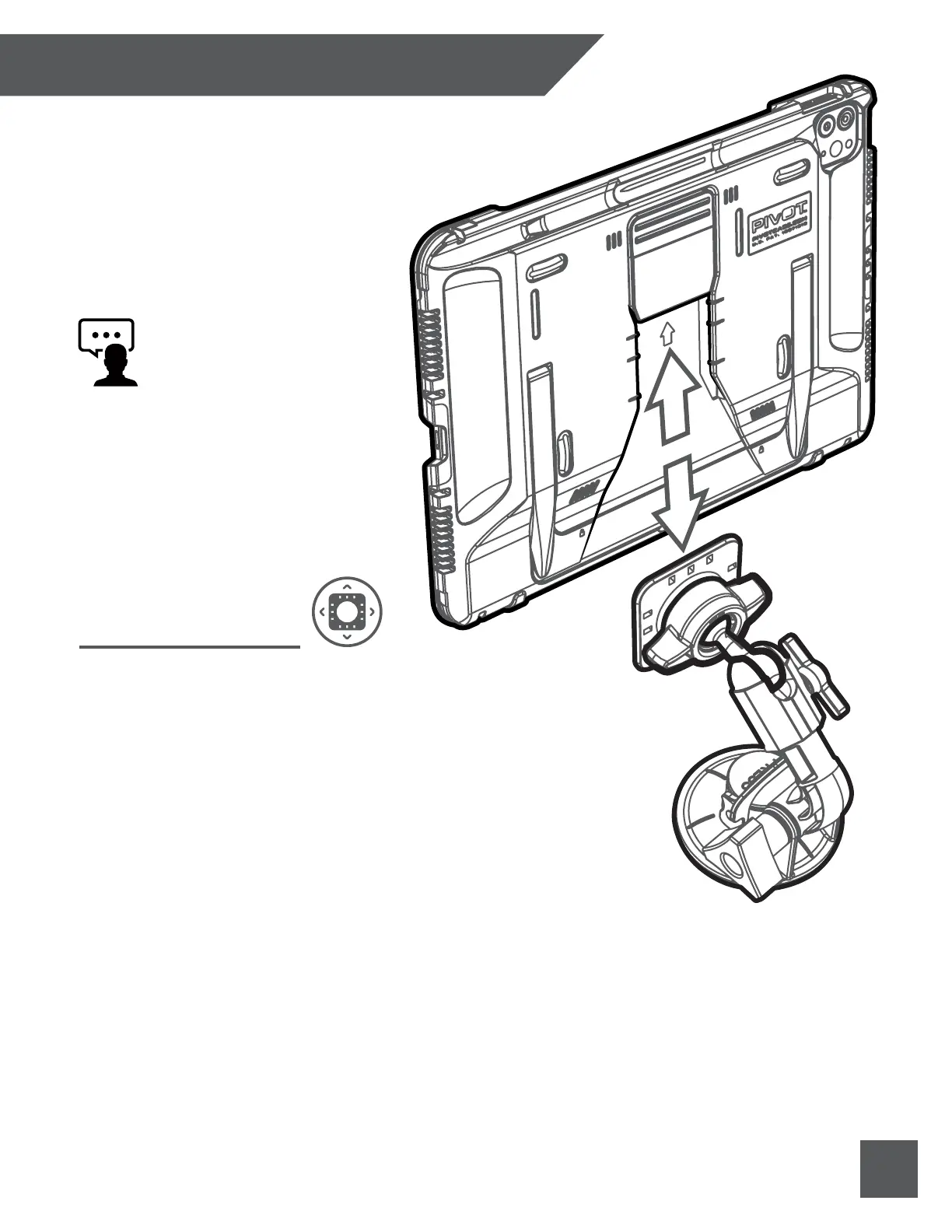

1. Position the PIVOT case above the mounting plate and ensure all
corners of the mounting plate are below the widest opening of the
mounting channel on the case body. If it is not possible to mount the case
from above the mounting plate, rotate the case and install from below or
the side.
2. Slide the case mounting channel on to the mounting plate. The mounting
plate will be guided into the case mounting channel until the clip engages the
mounting plate, completing the connection with an audible “CLICK.”
3. Depress the PIVOT Clip and reverse the process above to disconnect the case from
the mount.
WARNING! The mounting plate should slide smoothly into the case mounting channel
with very little resistance. If you encounter resistance, the mounting plate may be
misaligned. Do not force the case on to the mount or damage may occur. Gently remove the
case from the mounting plate, confirm correct alignment, and reattempt installation.
Universal Mounts
Did You Know?
PIVOT’s unique mounting
systems are universal and
interchangeable, ensuring
your PIVOT case will securely
connect to every standard
PIVOT mount: past, present,
and future.
