14.
!
Pro Tip!
It is not necessary to depress
the clip during install. If the
clip is depressed and held in
the release position, there will
not be an audible “Click!” to
confirm proper installation.
!
Pro Tip!
If you feel resistance on the
mounting plate as it enters
the mounting channel, you
may be engaging the
“speed bumps” along the
outer edges. They are
designed to provide tactile
feedback, which indicates
misalignment.
PIVOT’s audible “Click!” engagement indicates the case is properly and securely connected
to the mount. If there is no “Click!” during installation, the case may be misaligned, and
you should reattempt installation.
Click! Connection

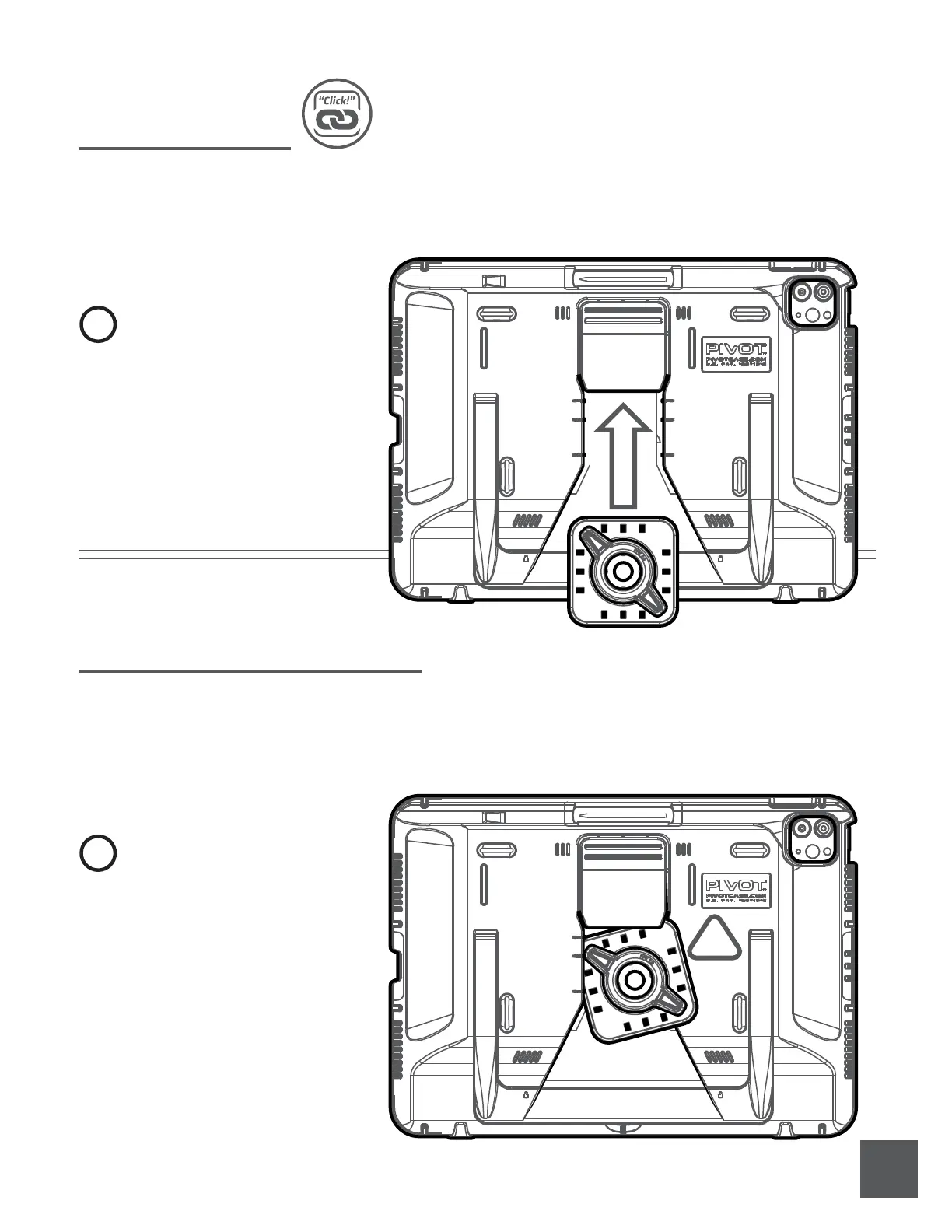

Shown below is an example of an incorrect alignment of the mounting plate and PIVOT
case. The clip is not properly engaged with the mounting plate and is not holding the case
in the locked position. The mounting plate is not fully inserted into the mounting channel
and will not support the weight of the case and device.
Incorrect Mount Alignment
!
