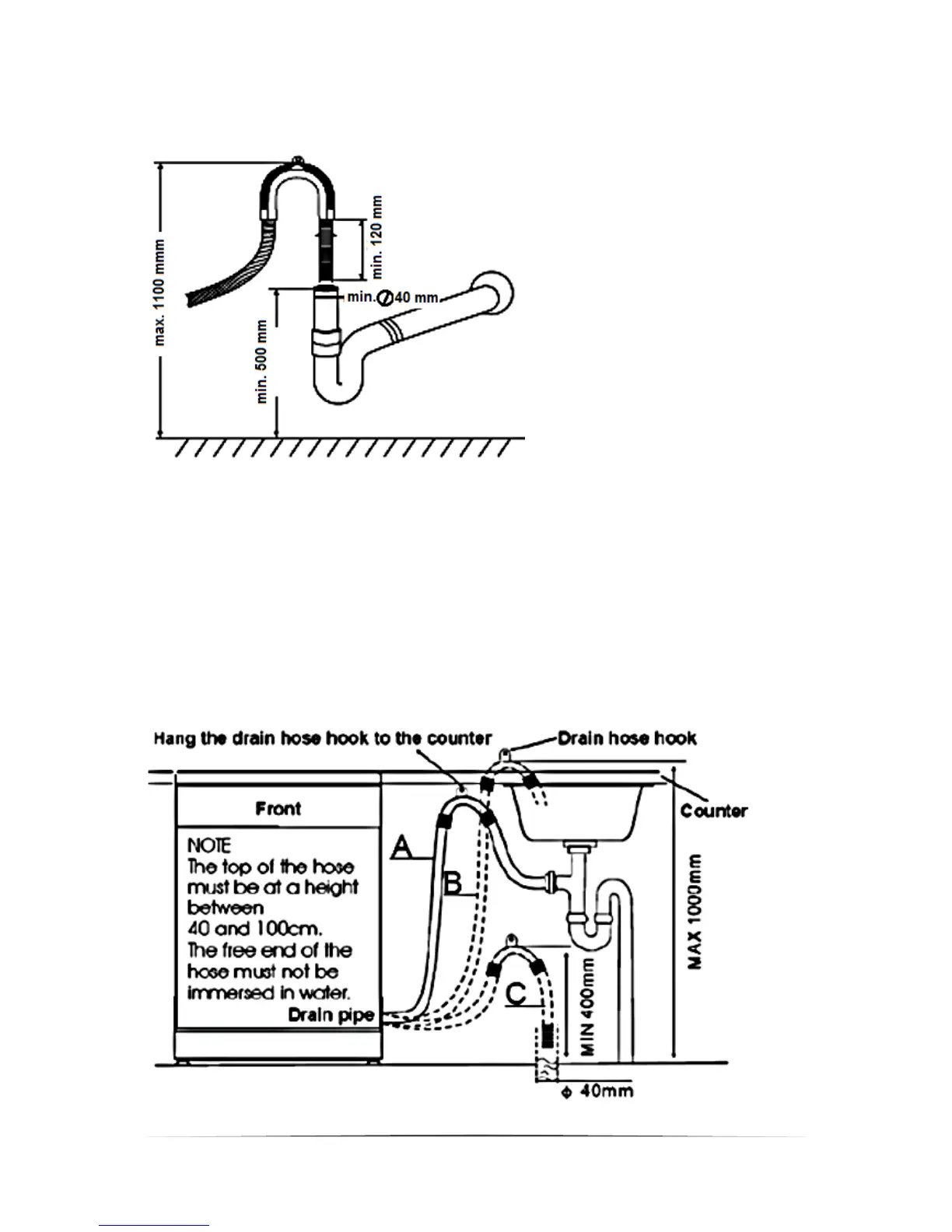

Fit the drainage hose of your
appliance to the drainage pipe
without bending.
If the length of the hose is not
sufficient, apply to your
authorized service for an
extension made from the same
material as the original hose.
Remember that the length of the
hose (including extension) should
not exceed 4 meters.
If the drainage hose is longer the 4 m. the dishes will not be cleaned properly .
Check that the connection does not leak. Fix the outlet hose with a hose-holder.
8. Raised level installation
Partially and fully integrated appliances can be installed at a raised level when
connected properly. A collar enables the bending of the drain hose. There is a
holding device on the collar to fix the collar. The drain hose must have a height of
min. 40 cm at the top of the collar. Look at the drawing below for the connection
options A, B and C.
