Pkm EB-C4-2KBTC - Ventilation and Clearance Requirements

32
thickness of the work top should be at least 30 mm. Choose heat-resistant materials
for the work top only to avoid any deformation caused by the heat-radiation of the
appliance.
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
590
520
51
47
560
490
50 mini

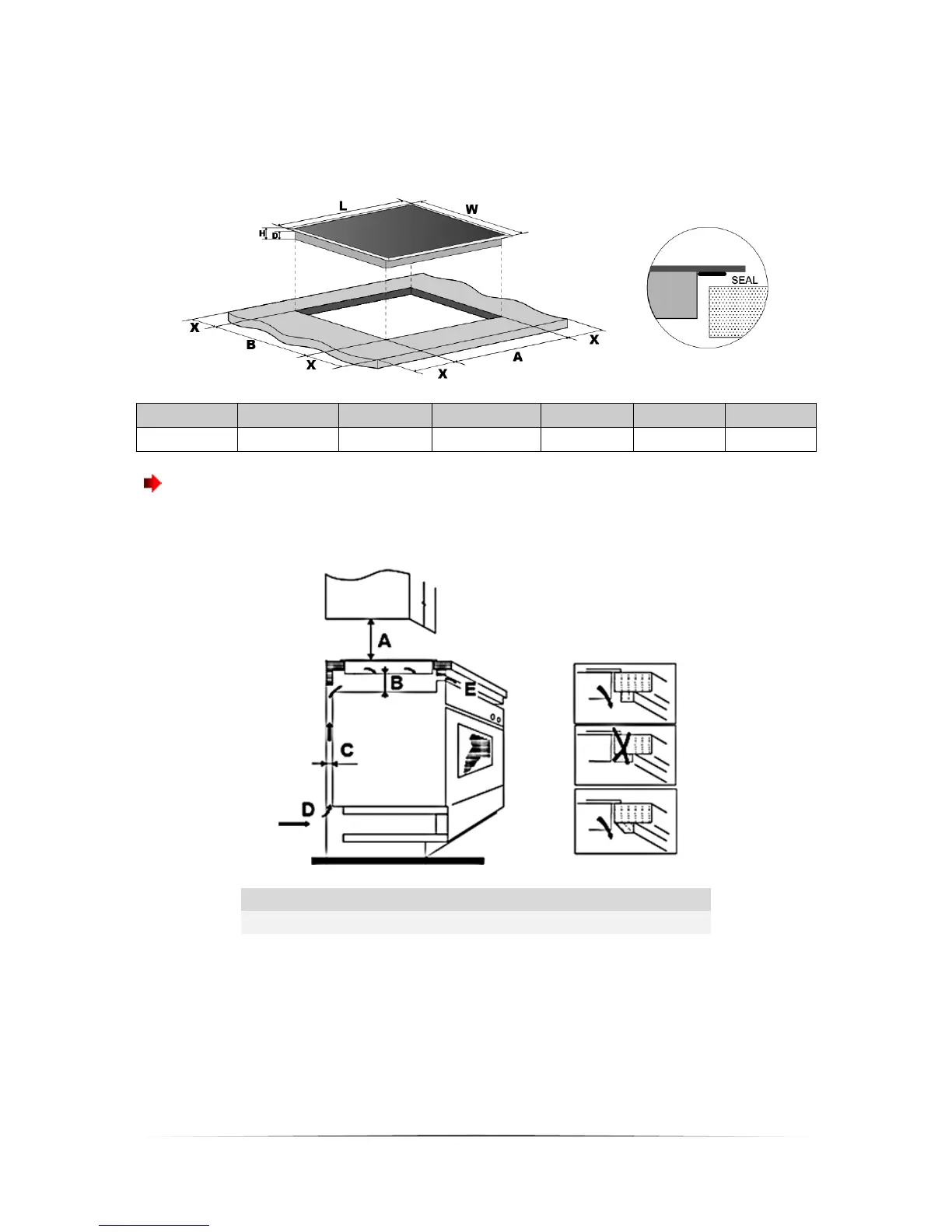

The appliance must be ventilated properly. Do not block the air outlet and inlet.
Ensure the ceramic cooker hob is in proper operating state. The safety distance
between the hob and a cupboard above should be at least 760 mm.
A(mm)
B(mm)
C(mm)
D
E
760
50 min.
30 min.
Air inlet
Air outlet 10 mm
B. Before locating the fixing brackets
1. Place the appliance on a stable, smooth surface (use the packaging). Do not
exert physical force to the controls of the hob.
2. For fixing the appliance on the worktop you must screw the 4 brackets on the
bottom after installation.
