2.3 Selection of installation equipment / Dimensions

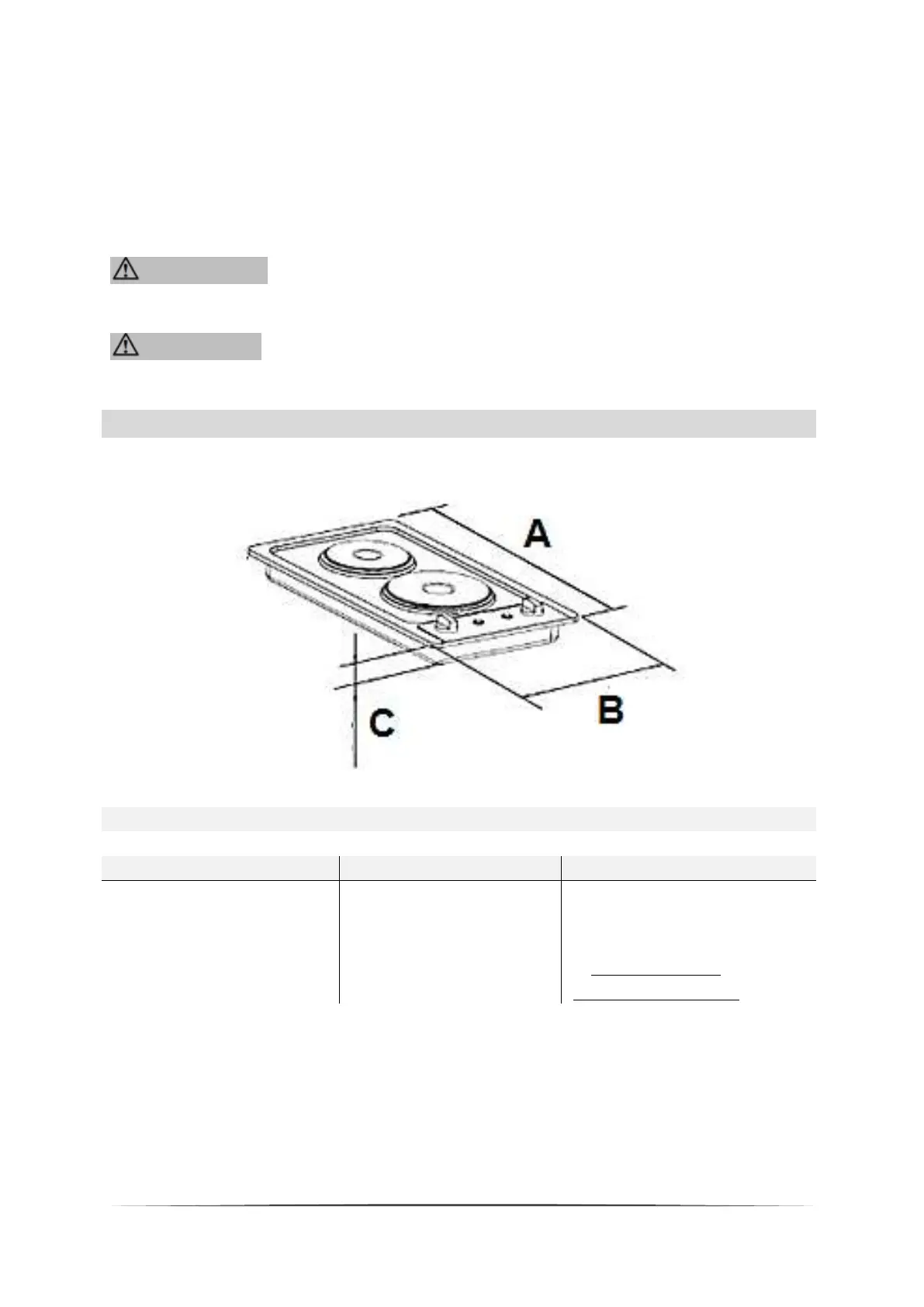

Cut out the installation hole as described on the drawing below. Choose heat-
resistant materials for the work top only to avoid any deformation caused by the
heat-radiation of the appliance.
WARNING! The safety distance between the hob and a wall
cupboard above should be at least 450 mm.
WARNING! The safety distance between the hob and an extractor
hood above should be at least 760 mm.
DIMENSIONS OF THE HOB:
A 1= DEPTH / B 1 = WIDTH / C = HEIGHT (TOTAL)
A
B
C
510 mm
290 mm
40 mm (total)
Height (frame): 10 mm
Height (lower part): 30 mm
