4

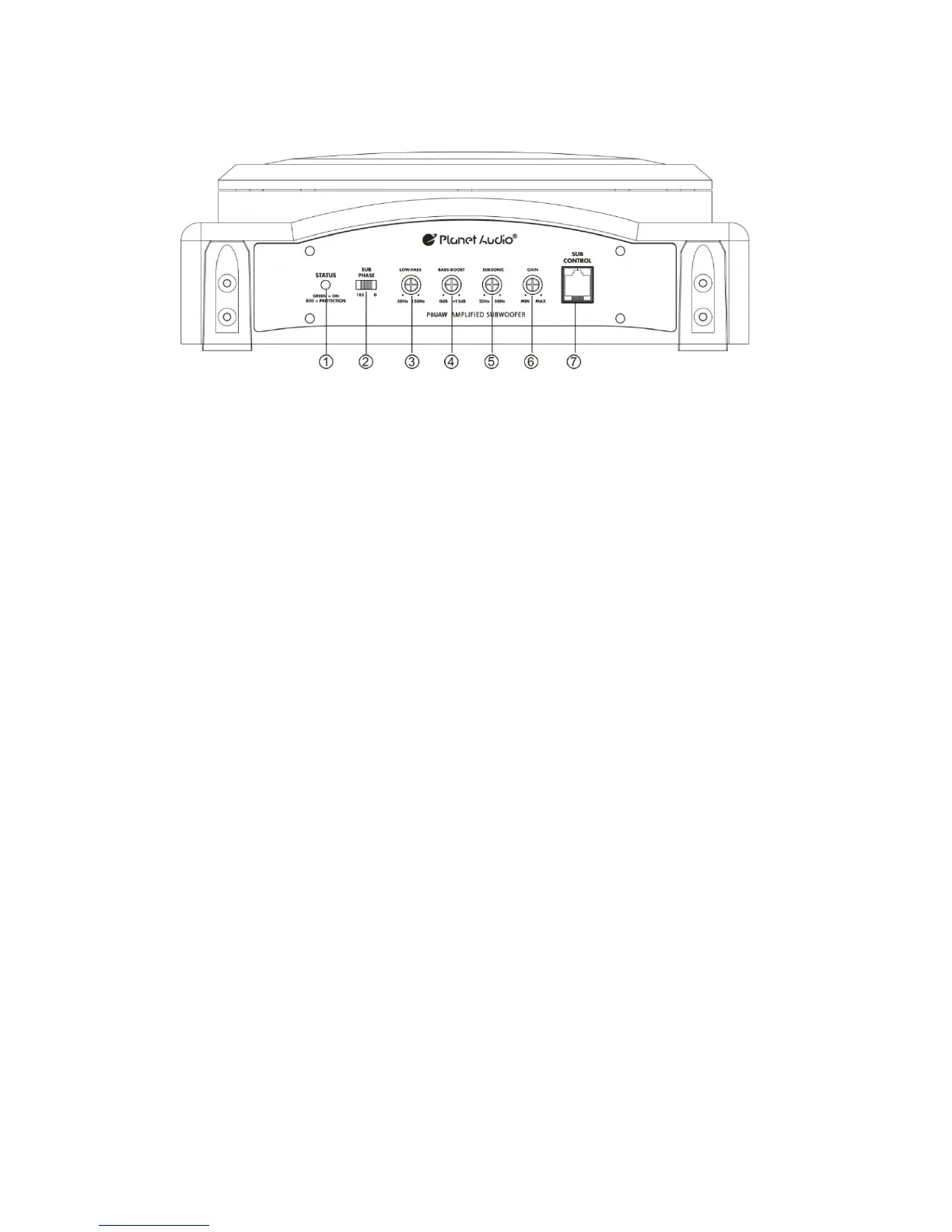

Front Panel Controls and Features
① LED STATUS INDICATOR
Green – On
Red –Protection
② SUB PHASE
The Sub Phase can be used to adjust for bass response. Each vehicle will be different
and should be set for your particular installation. If the bass response “disappears”,
flipping the switch should fix and will properly align the phase with the rest of the
system.
③ LOW PASS FILTER
The LP filter is adjustable from 50 Hz to 150 Hz @ 12dB/Oct.
④ BASS BOOST
The bass boost is centered at 45 Hz. Adjusting this setting will boost 45 Hz up to 12
dB
⑤SUBW00FER SUBSONIC FILTER
The subsonic filter can be adjusted 20-50Hz.
⑥ SUBWOOFER GAIN CONTROL
The volume control on the head unit should be turned up to ¾ of max.
Slowly adjust the Gain to where distortion is barely audible and then back off a bit
of the adjustment.
⑦ SUBWOOFER REMOTE CONTROL PORT
Attach the included remote control to control the level of the subwoofer
independently. This should be installed in a convenient location where you can adjust
the level of subwoofer easily.
