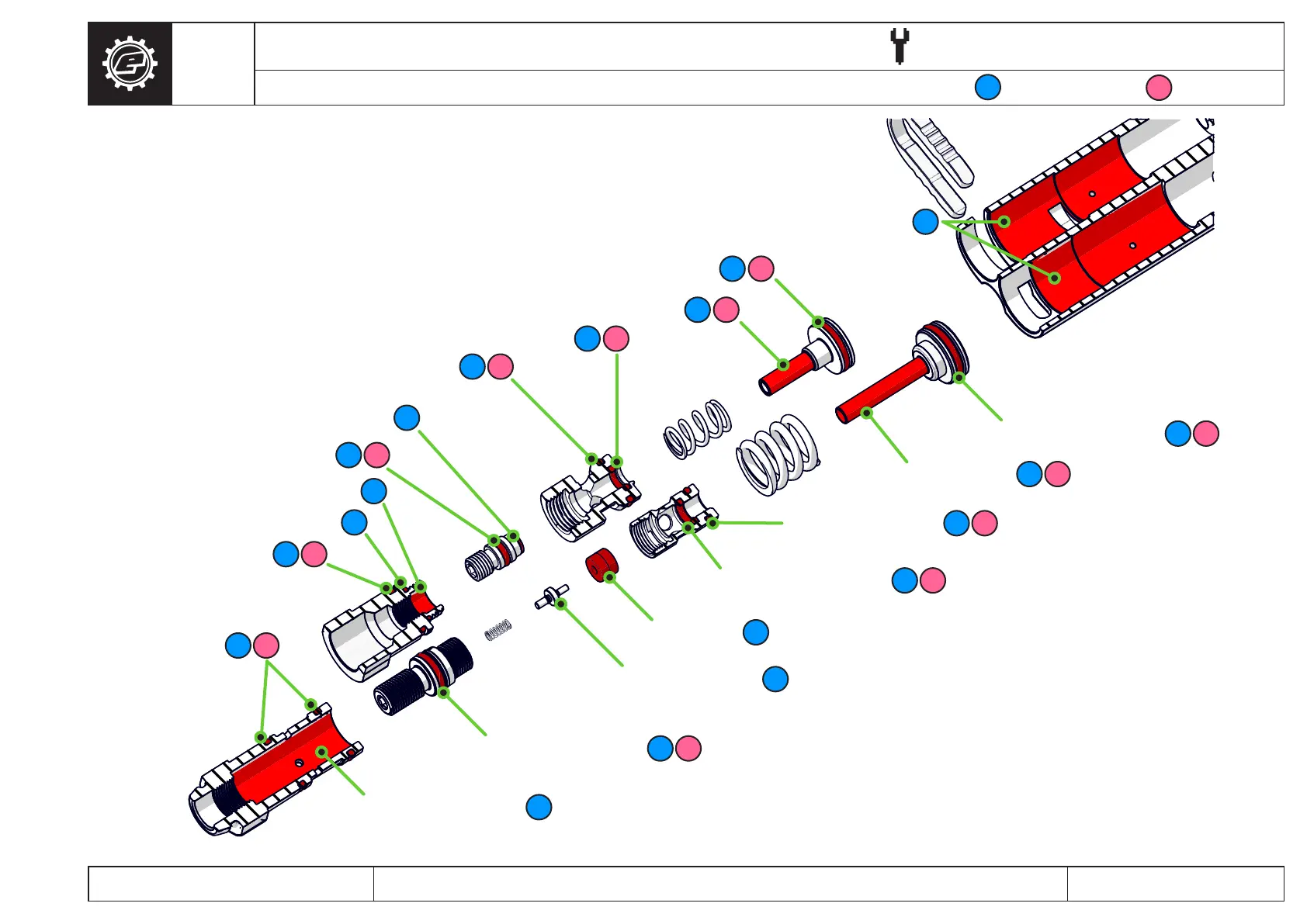

SERVICE INDICATOR - *SERVICE REQUIRED PART 1/2
CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES
(C) = CLEAN & INSPECT (R) = LUBRICATE
L
I
013 NBR70 O-RING
REGULATOR HOUSING
LPR PISTON
013 NBR70 O-RING
008 NBR70 O-RING
LPR SEAL
007 NBR70 O-RING
LPR CAP
7X1 NBR70 O-RING
013 NBR70 O-RING
014 NBR70 O-RING
REGULATOR BODY
011 NBR70 O-RING
HPR SEAL
PURGE POPPET
008 NBR70 O-RING
011 NBR70 O-RING
HPR PISTON
013 NBR70 O-RING
L
L
L
L
L
L
L
L
L
L
L
L
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
*In addition to the ‘lubrication’ guide on previous page
