PLANET ECLIPSE EGO LV2 - Inline Regulator Leak

20
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EGO LV2 © 2024 PLANET ECLIPSE LTD
INLINE REGULATOR LEAK

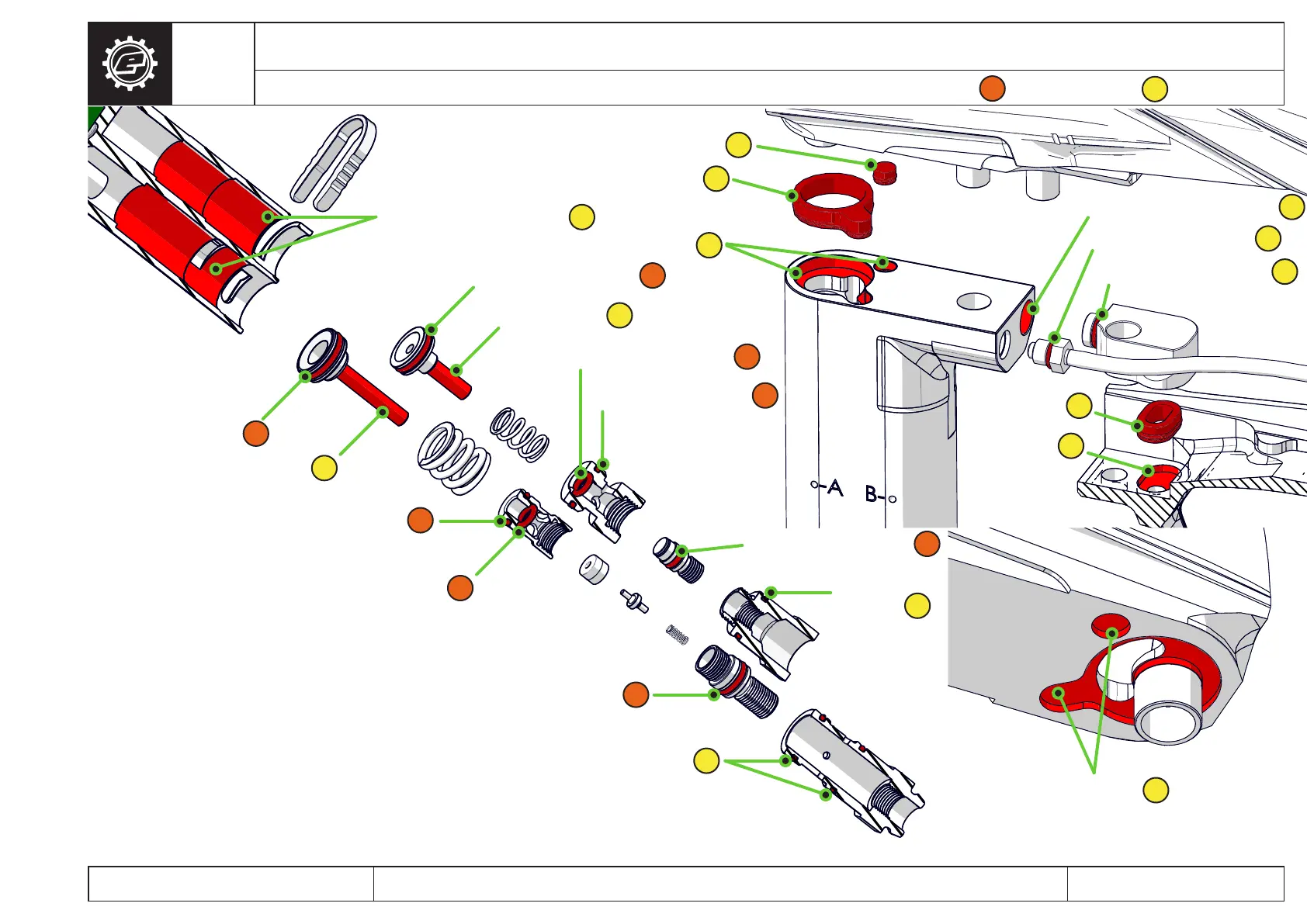

CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES
(C) = COMMON FAULT (R) = RARE FAULT
REGULATOR HOUSING
REGULATOR HOUSING
REGULATOR GASKKET
REGULATOR PLUG
013 NBR70 O-RING
014 NBR70 O-RING
HPR PISTON
011 NBR70 O-RING
008 NBR70 O-RING
011 NBR70 O-RING
014 NBR70 O-RING
LPR PISTON
REGULATOR HOUSING
5X1 NBR70 O-RING
FRAME
GASKET
FRAME
LV2 BODY
4X1 NBR70 O-RING
013 NBR70 O-RING
007 NBR70 O-RING
013 NBR70
O-RING
008 NBR70 O-RING
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
C
C
C
C
C
C
C
C
C
