9

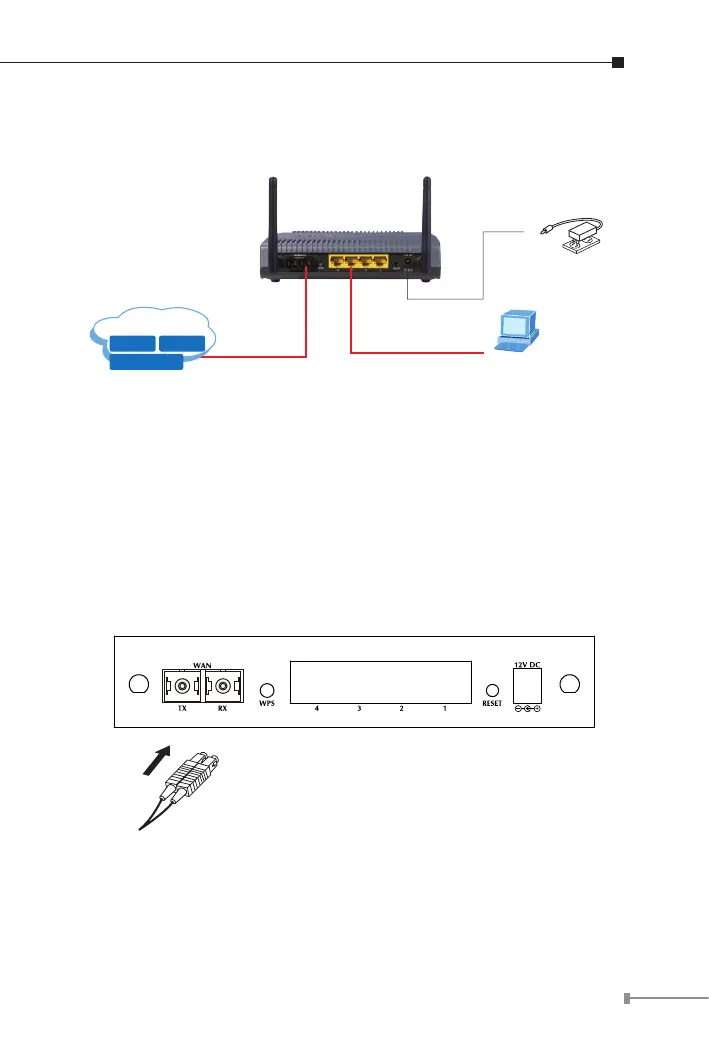

STEP 3: Connect the PC to LAN port. Check the LAN LED on the front
panel is on accordingly.
STEP 3: Connect the PC to LAN port. Check the LAN LED on the front panel is on accordingly
STEP 1: Locat the VC-230N on an
optimum place, install and
adjust the antenna for the best
coverage
STEP 2: Connect the Power Adapter to VDSL2 Router. Check
the PWR LED on the front panel is on accordingly
Power Adapter
PC
(DHCP Client or 192.168.1.2)
Power Adapter
In the following steps, terms of VDSL2 Router will mean the two models – VC-230/VC-230N
unless model number is specified; and photo of VC-230N will be used as the photo example.
Internet
Data VoIP
Entertainment
Connect the Fiber-optic cable to WAN port. Check the WAN LED on the
front panel is on accordingly.
The Fiber types of PLANET Wired / Wireless Fiber Router as the
following:
FRT-401 / FRT-401N: 100Base-FX (SC, MM, 2Km)
FRT-401S15 / FRT-401NS15: 100Base-FX (SC, SM, 15Km)
FRT-405 / FRT-405N: 100Base-FX SFP (LC, MM/SM)
100Base-FX
SC Fiber
FRT-401 / FRT-401N / FRT-401S15 / FRT-401NS15
