Quick Installation Guide

- 6 - PLANET Technology Corp.2024

inlet power socket and consists of one terminal block connector within 6

contacts. Please follow the steps below to insert the power wire.

1. Insert positive/negative DC power wires into contacts 1 and 2 for

Power 1 or 5 and 6 for Power 2.

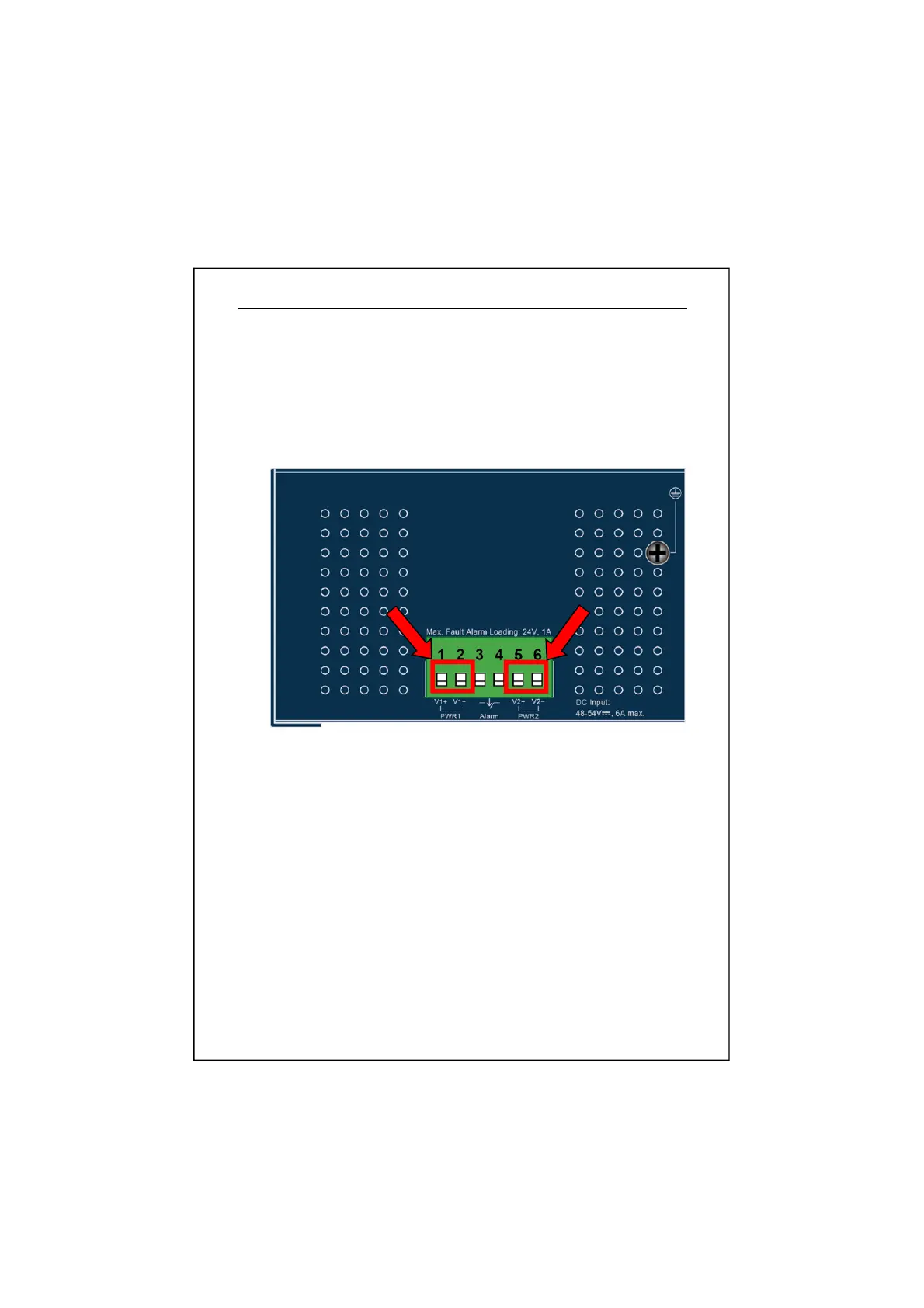

Figure 3-1: IGS-4215-4P4T/IGS-4215-4P4T2S/IGS-4215-8P2T2S DC

Inlet Power Socket
