Quick Installation Guide
- 8 - PLANET Technology Corp.2024
2. Tighten the wire-clamp screws for preventing the wires from
loosening.
1 2 3 4 5 6
V1+ V1- V2+ V2-
Power
1
Power
2

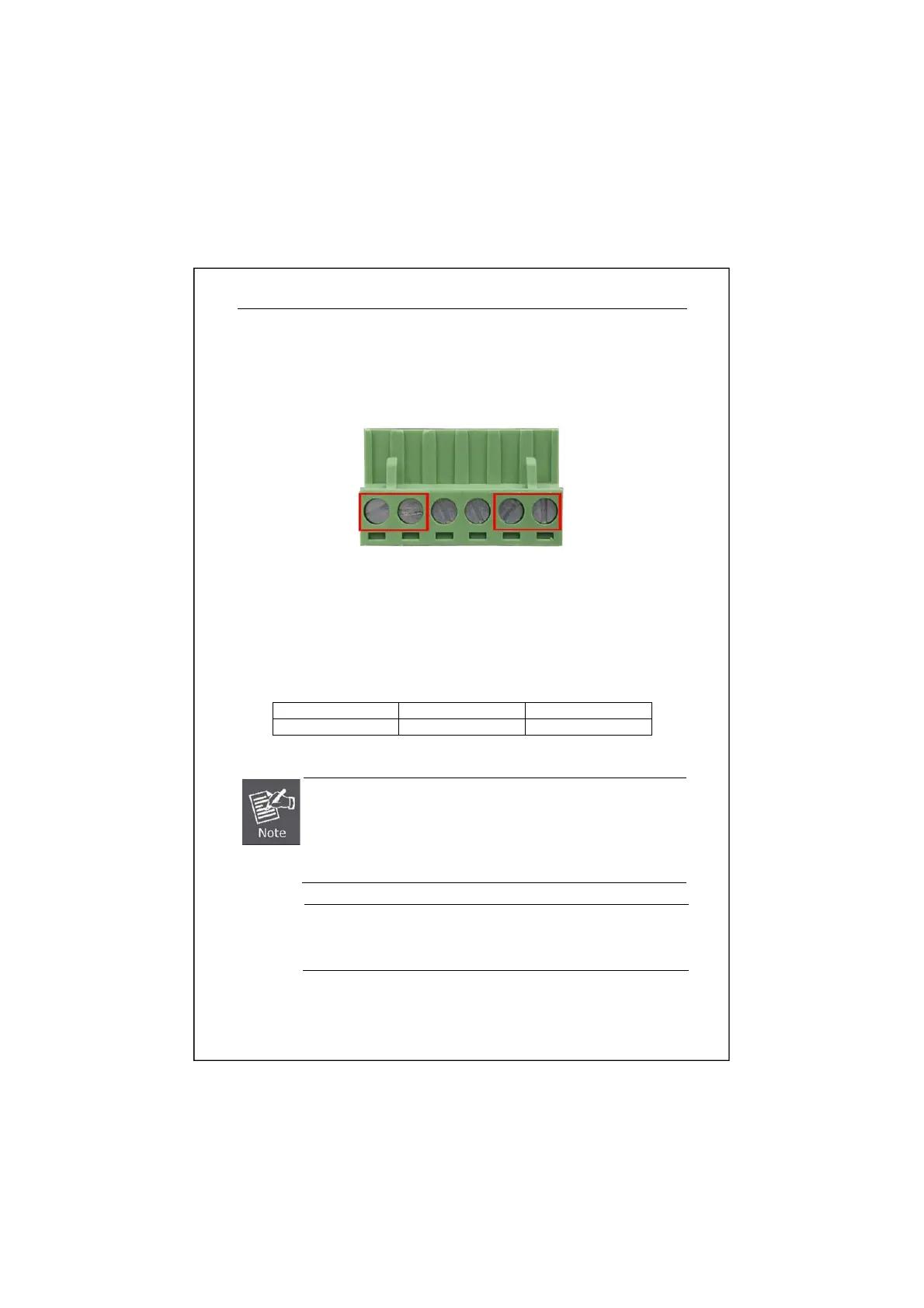

Figure 3-4: Power 1 & 2 Pins of Terminal Block Connector
Item Positive (+) Pin Negative (-) Pin
IGS-4215 Series Pin 1/5 Pin 2/6
1. The wire gauge for the terminal block should be in the
range from 12 to 24 AWG.
2.
Please check the wire AWG Ampere specification
before connecting PLANET Industrial Managed
PoE+ Switch.
Caution
PWR1 and PWR2 must provide exactly the same DC
voltage for power load balance while operating with dual
power input.
