2. Hardware Introduction
This section describes the functionalities of the outdoor PoE Injector’s
components.
2.1 Product Outlook
Unit: mm
PoE-
in-Use
PoE
++
Data
IPOE-175
PWR
DC Input Range:
24-56V , 4A max.
V+

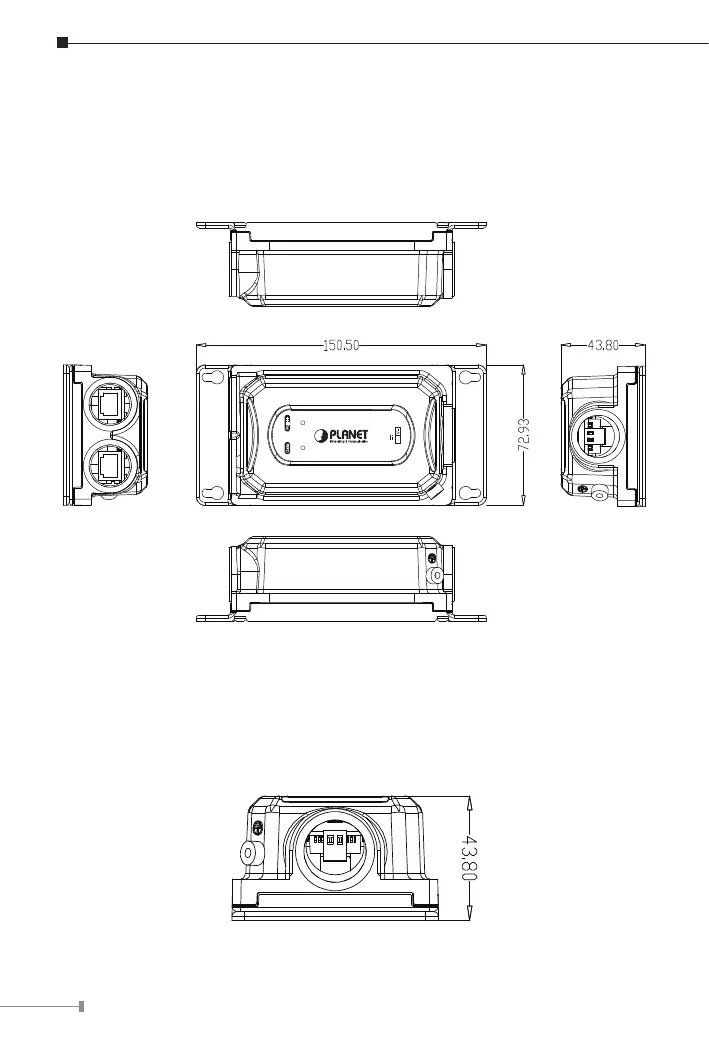

Figure 2-1: IPOE-175 product outlook
2.2 Power Input Port
Figure 2-2 shows the power input port side of the IPOE-175
Figure 2-2: Power Input Port
