18
2.2 LRP-101CE

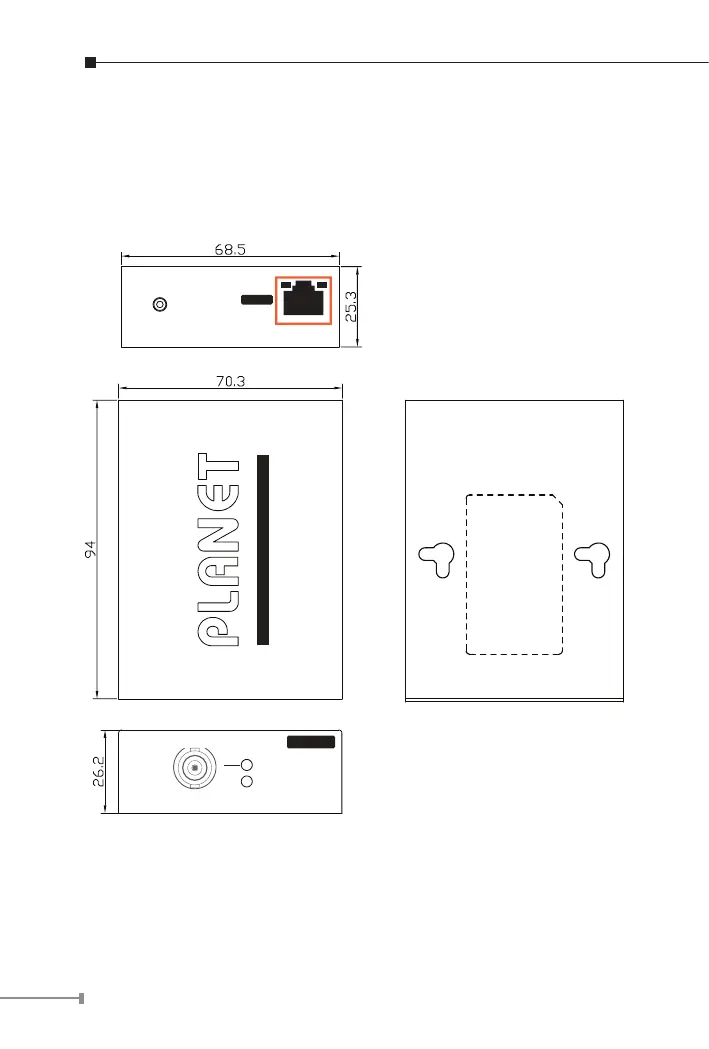

2.2.1 LRP-101CE Physical Dimensions
z LRP-101CE dimensions (W x D x H): 94 x 70.3 x 26.2 mm
Rear Panel
Top Panel
Bottom
Front Panel
LNK/ACTPoE In-use
10/100BASE-TX
PoE OUT
Long Reach Power over Ethernet
Long Reach PoE Extender - Coax
LRP-101CE
LNK
PWR
LRP IN
Extender
