2.3 LRP-101UH

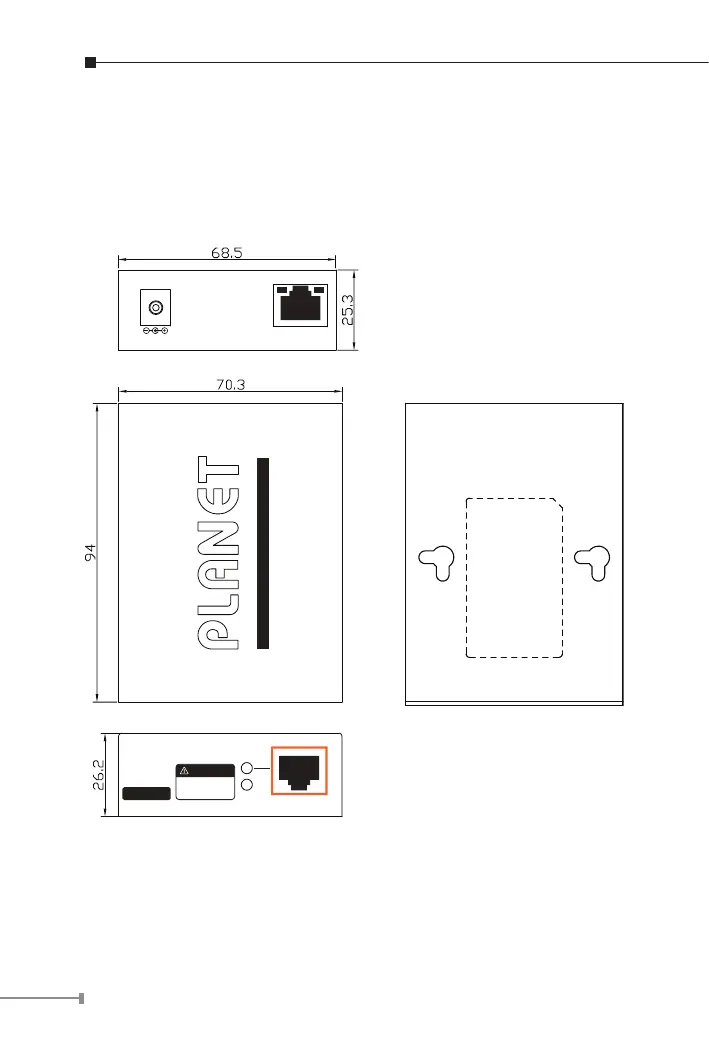

2.3.1 LRP-101UH Physical Dimensions
z LRP-101UH dimensions (W x D x H): 94 x 70.3 x 26.2 mm
Rear Panel
Top Panel
Bottom
Front Panel
Long Reach PoE Injector - UTP
LRP-101UH
LRP OUT
LNK
PWR
Injector
Long Reach Power over Ethernet
48~56V DC IN
LNK/ACTPoE IN
10/100BASE-TX
The LRP interface is
allowed to connect to
LRP Extender only.
CAUTION
