4-2 Removing the SFP/SFP+ Transceiver Module
1. Make sure there is no network activity by consulting or
checking with the network administrator.
2. Remove the Fiber Optic Cable gently (See Figure 2).
3. Turn the handle of the SFP/SFP+ Transceiver module
to the horizontal level.
4. Pull out the SFP/SFP+ Transceiver module gently
through the handle.
SFP/SFP+
SFP/SFP+
Copper

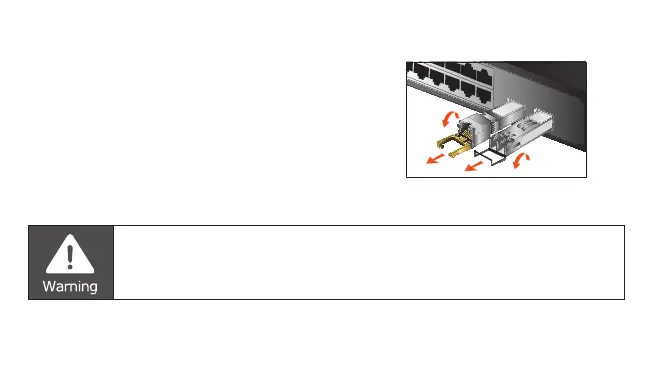

Figure 2: Removing the SFP/SFP+
Mini-GBIC Module
Never pull out the SFP/SFP+ Transceiver module without pulling the handle or the push
bolts on the module. Directly pulling out the SFP/SFP+ Transceiver module would damage
the SFP/SFP+ Transceiver module of the device.
