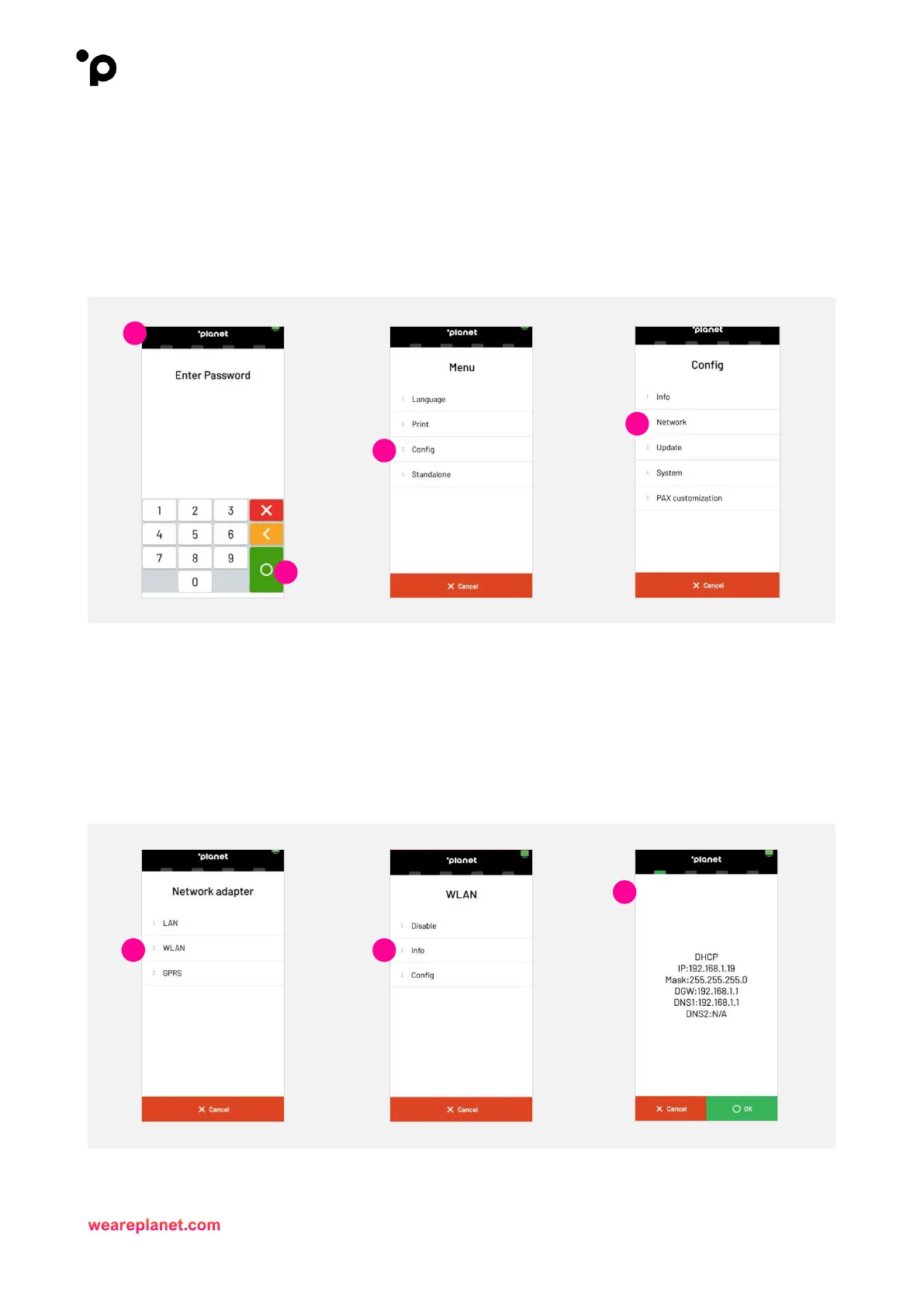

6. Checking IP connection settings
1. To enter the IntegraTE_Pax menu, you will need to press and hold the ‘Planet' icon at the top of the
screen.
2. When “Please Enter Password” is displayed, enter password and press the green Enter button.
3. Then, select “Config/Configuration”.
4. Next, select “Network”.
5. Now, select: WLAN – If WIFI is enabled. LAN – If Ethernet (LAN) is enabled. GPRS – If GPRS is
enabled.
6. Select “Info”.
7. The following information will be displayed:
- DHCP/Static
- IP Address
- Subnet Mask
- Default Gateway IP Address
- DNS 1
- DNS 2
