3. Starting Web Management
The following shows how to start up the Web Management of the 802.3bt
PoE++ Managed Injector Hub. Note the 802.3bt PoE++ Managed Injector
Hub is congured through an Ethernet connection. Please make sure the manager
PC must be set to the same IP subnet address.
For example, the default IP address of the 802.3bt PoE++ Managed Injector
Hub is 192.168.0.100, then the manager PC should be set to 192.168.0.x (where
x is a number between 1 and 254, except 100) and the default subnet mask is
255.255.255.0.
PC / Workstation with
Web Browser
Gigabit 802.3bt PoE++ Managed Injector Hub
192.168.0.x
IP Address:
192.168.0.100
RJ45 Management Port
Reset
Management
LNK/ACT

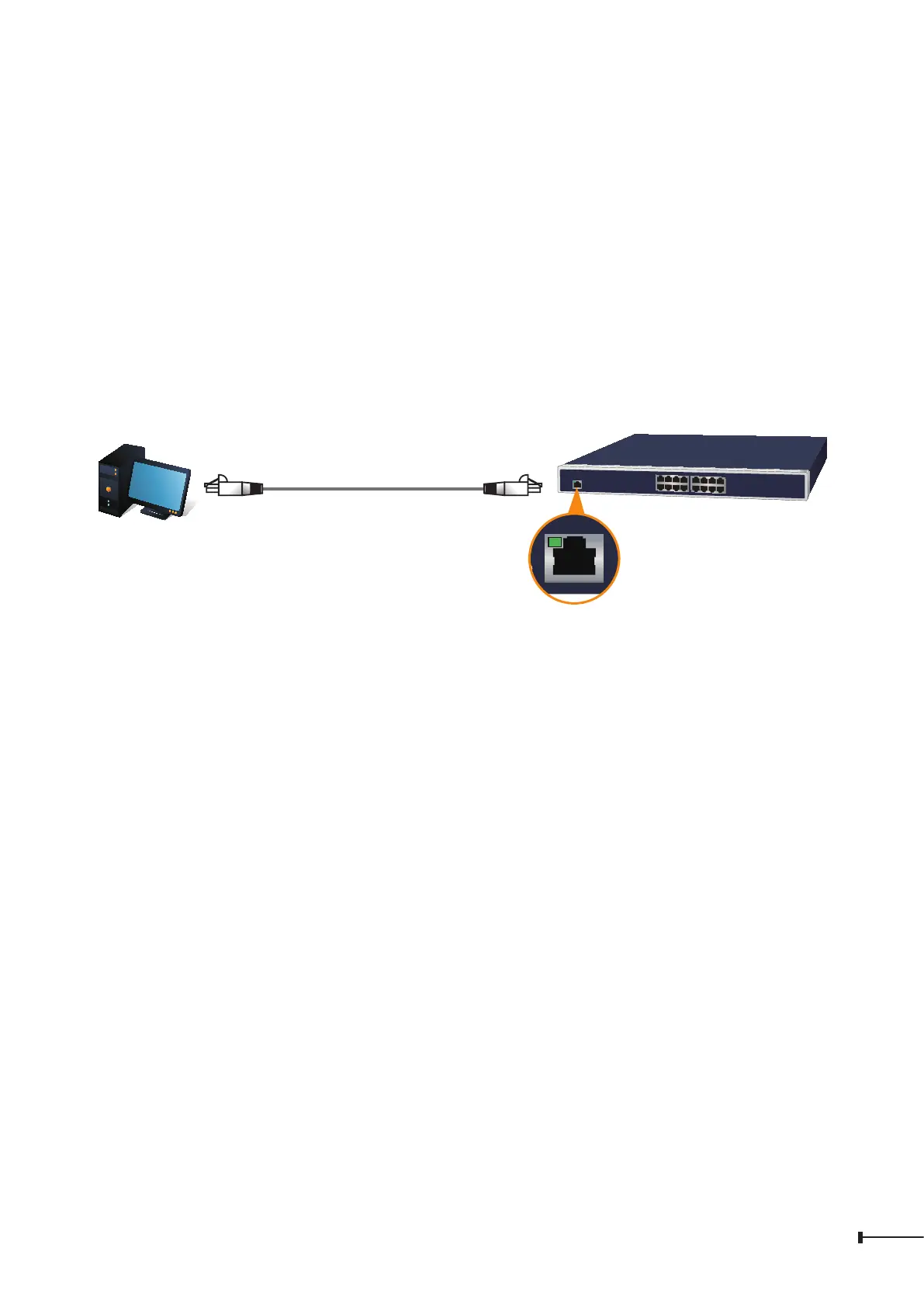

Figure 3-1: IP Management Diagram
