User Manual of WDRT-1200AC
-84-
6.2 Windows 7 (WLAN AutoConfig)
WLAN AutoConfig service is built-in in Windows 7 that can be used to detect and connect to wireless network.
This built-in wireless network connection tool is similar to wireless zero configuration tool in Windows XP.

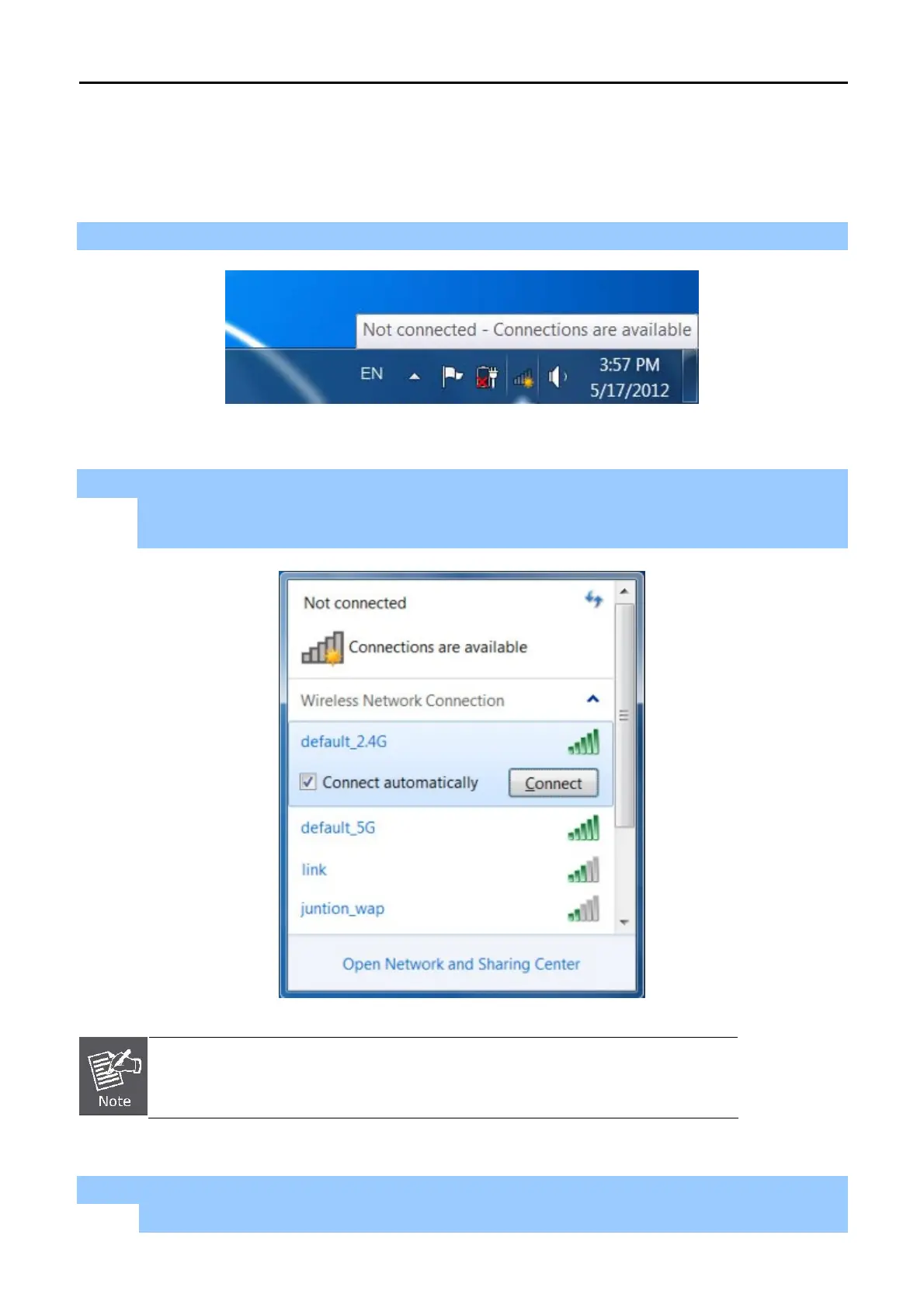

Step 1: Right-click on the network icon displayed in the system tray
Figure 6-5
Step 2: Highlight and select the wireless network (SSID) to connect
(1) Select SSID (Here is taking default_2.4G for example)
(2) Click the [Connect] button
Figure 6-6
If you will be connecting to this Wireless Router in the future, check [Connect
automatically].
Step 4: Enter the encryption key of the Wireless Router
(1) Connect to a Network box will appear
