Planet WGS-804HP User Manual

- 9 -
- 10 -
- 11 -
- 12 - - 13 - - 14 -

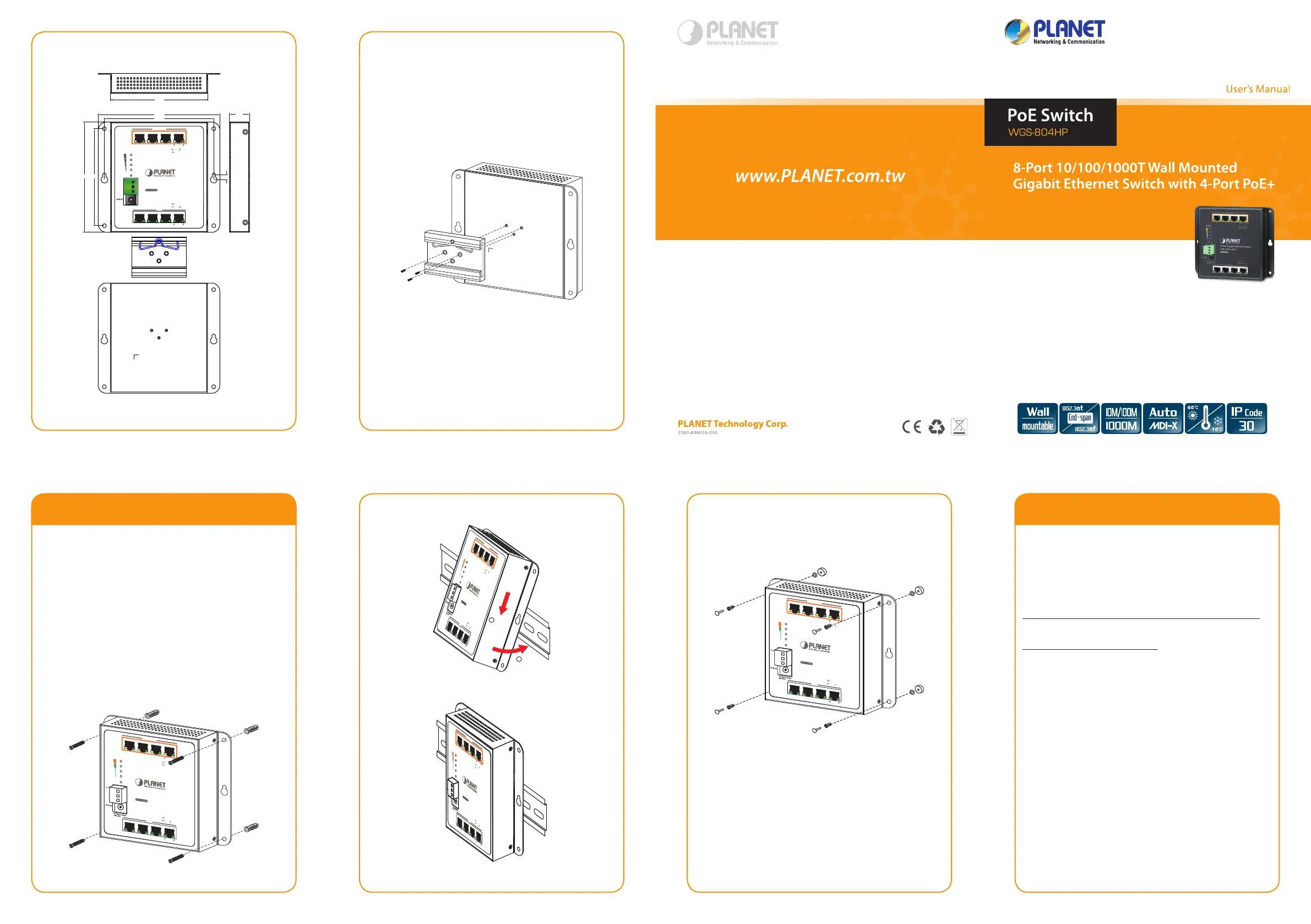

2.4 Physical Dimensions (WxDxH):
148 x 24.2 x 134mm
118.00
118.00
148.00
24.20
6.00
138.00
134.00
3 421
7 865
Data+ Power
Data
120
PoE Power
Usage (W)
90
60
30
PWR
8-Port Gigabit Ethernet Switch
with 4-Port PoE+
ACTLNK
1000
ACTLNK
PoE In-Use
Dimensions ( unit = mm )
DC Input Range
48V-56V
V+
V
-
Ground
3.2 DIN-Rail Mounting Installation
The DIN-Rail is screwed on the WGS-804HP when
out of factory. When the wall mount application for
the WGS-804HP needs to be replaced with DIN-Rail
application, please refer to following gures to screw the
DIN-Rail on the WGS-804HP. To hang the WGS-804HP,
follow the below steps:
Step 1: Screw the DIN-Rail on the WGS-804HP
3. Installation
3.1 Wall Mount Installation
To install the PoE Ethernet Switch on the wall, simply
follow the following steps:
Step 1: There are 4 holes with 8mm diameter on
the wall; the distance between the 2 holes is
133mm and the line through them must keep
horizontal.
Step 2: Install a conductor pipe inside the board hole
and ush the edge of the conductor pipe with
the wall surface.
Step 3: Screw the bolts into the conductor pipe. The
WGS-804HP is between bolts and conductor
pipe, as shown below.
3 421
7 865
Data+ Power
Data
120
PoE Power
Usage (W)
90
60
30
PWR
8-Port Gigabit Ethernet Switch
with 4-Port PoE+
ACTLNK
1000
ACTLNK
PoE In-Use
Step 2: Lightly press the button of DIN-Rail into the
track
3 421
7 865
Data+ Power
Data
120
PoE Power
Usage (W)
90
60
30
PWR
8-Port Gigabit Ethernet Switch
with 4-Port PoE+
ACTLNK
1000
ACTLNK
PoE In-Use
1
Push
2
Click
Step 3: Check whether the DIN-Rail is tightly on the
track
3 421
7 865
Data+ Power
Data
120
PoE Power
Usage (W)
90
60
30
PWR
8-Port Gigabit Ethernet Switch
with 4-Port PoE+
ACTLNK
1000
ACTLNK
PoE In-Use
3.3 Magnet Installation
To install the WGS-804HP on a magnetic surface, simply
follow the following picture:
3 421
7 865
Data+ Power
Data
120
PoE Power
Usage (W)
90
60
30
PWR
8-Port Gigabit Ethernet Switch
with 4-Port PoE+
ACTLNK
1000
ACTLNK
PoE In-Use
4. Customer Support
Thank you for purchasing PLANET products. You can
browse our online FAQ resource and User’s Manual on
PLANET Web site rst to check if it could solve your
issue. If you need more support information, please
contact PLANET switch support team.
PLANET online FAQ:
http://www.planet.com.tw/en/support/faq.php?type=1
Switch support team mail address:
support_switch@planet.com.tw
Copyright © PLANET Technology Corp. 2014.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
