Connection diagrams
3.2 Divided voltage output source from plasma cutter

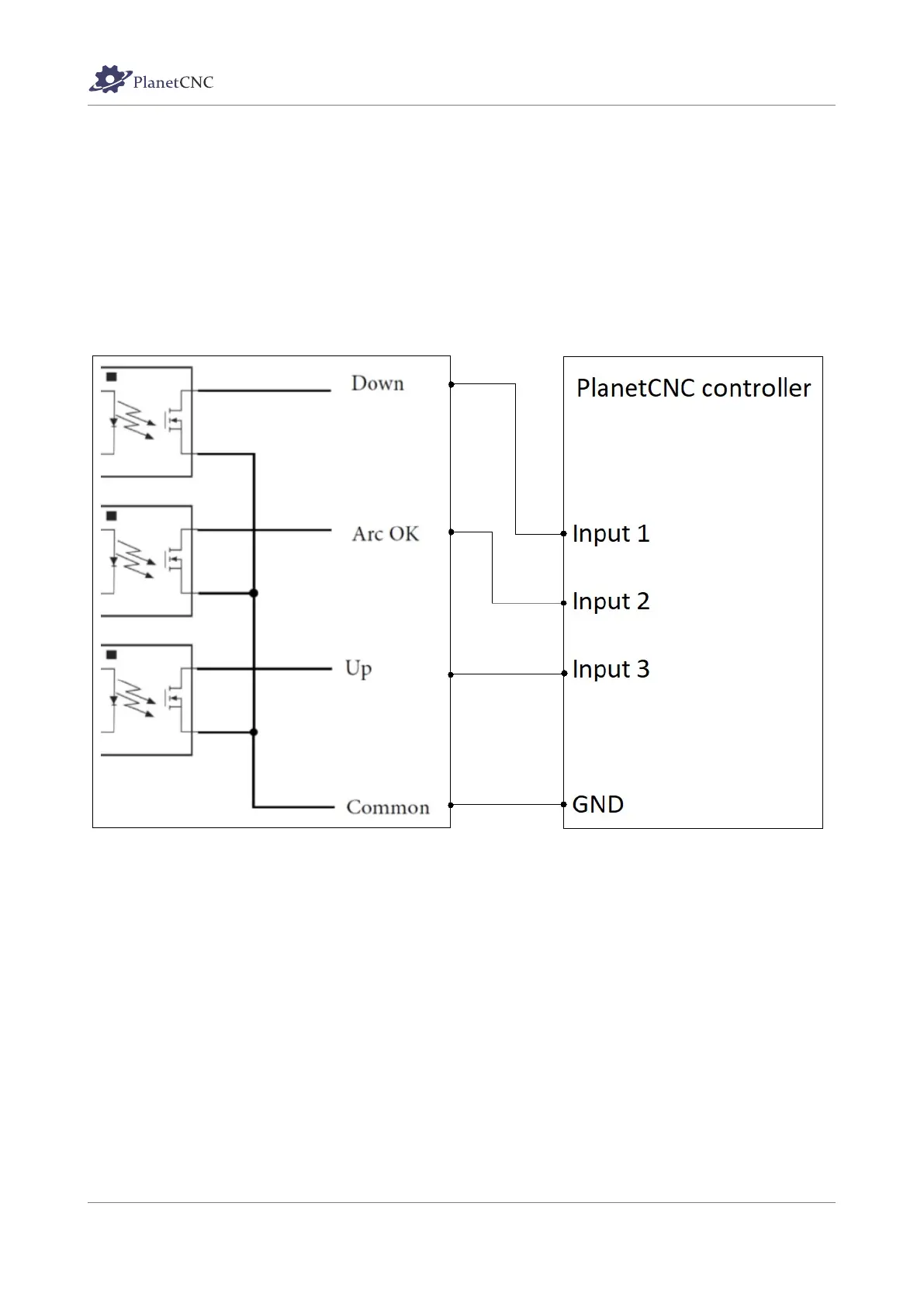

3.3 Torch height controller connection with PlanetCNC controller
inputs
Please note that Down, Up, Arc OK signals can be connected to any input of PlanetCNC
controller since inputs function can be configured later in PlanetCNC TNG settings.
