Plantronics CS520 Series User Manual

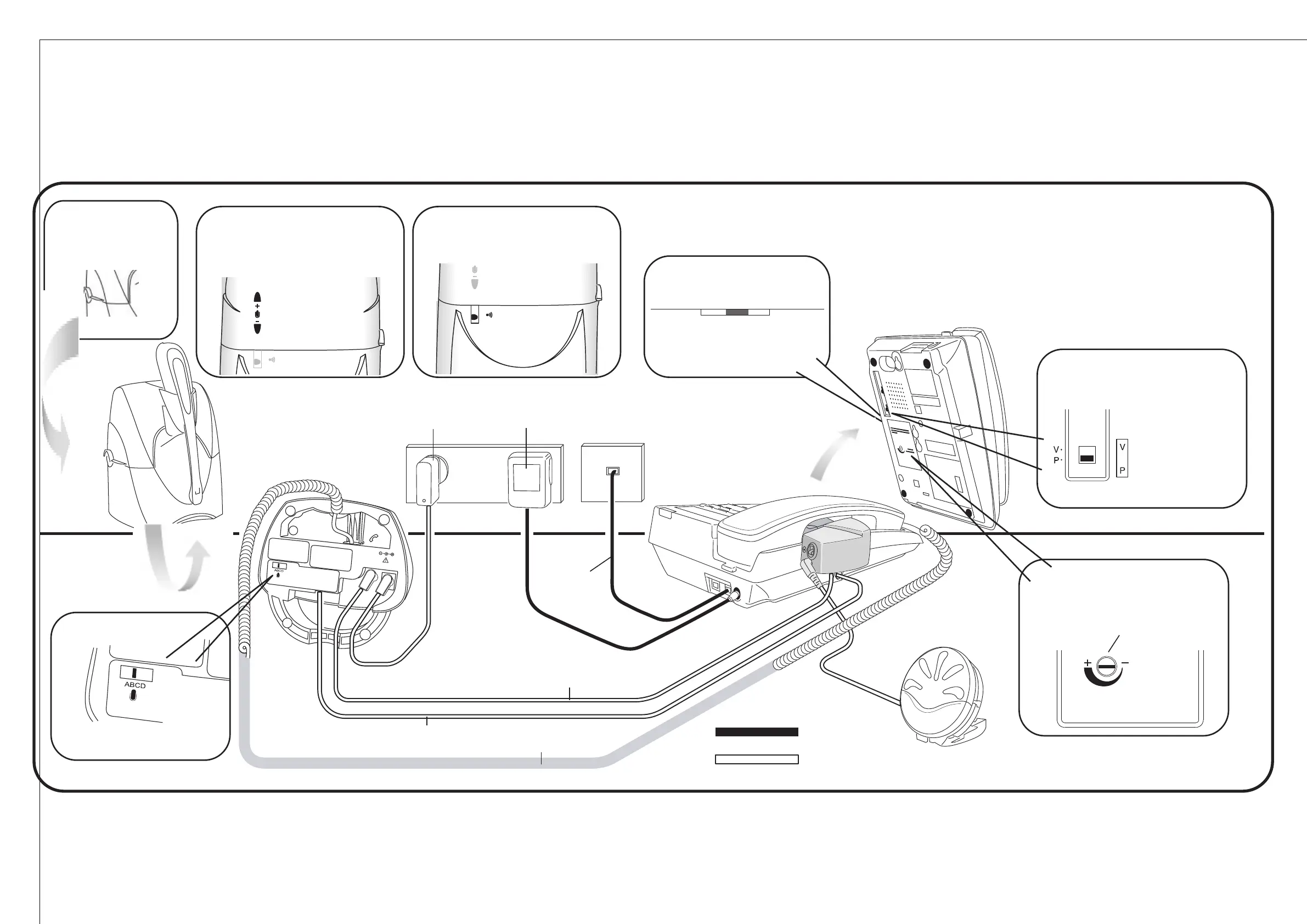

CS60 Connection Diagram for IQ750
CS60
Plantronics
Lifter Power Cord
IQ750
5 August 2011
Interquartz
Line Cord
Telephone
Network
Outlet
Interquartz
IQ750 9V Adaptor
Mains
Power
Outlet
Plantronics
Base Power Supply
Interquartz Cable
Plantronics Cable
Set Headset Polarity Switch to "P"
Reversed headset
polarity
Normal headset
polarity
Step 1
HEADSET
MIC ADJUST
Step 2
Set Headset Mic Adjust Control
fully clockwise to Recommended
Setting Position as shown
Speaking Volume Minor Adjust
Press the lower button 7 times and then
the upper button 4 times
1
2
3
4
1
2
3
4
Step 5
Set Listening Volume Major Adjust
Control to "3"
Step 6
OLI
H
L
1
0
L
i
f
t
e
r
Plantronics
Telephone Cord
Interquartz
Handset Cord
Set Speaking Volume Major Adjust
to "B"
Step 4
Set Volume Slider to
Recommended Setting Position
as shown
- VOLUME +
Step 3
Step 7
Rotary switch on headset
base to be set to
Position 1

Plantronics CS520 Series Specifications

General

Headset Type	Binaural
Wireless Technology	DECT 6.0
Range	Up to 350 feet
Talk Time	Up to 9 hours
Microphone	Noise-canceling
Wearing Style	Over-the-head
Charging Time	3 hours
Compatibility	Desk phones
