Solar
Panel(s)
+
-
PL20/40
B+ S- B- L-
Fuse/Breakers
Battery
+
–
B-
B- Sense wire
(Connect to Battery
Negative Terminal)
(NOTE: Low Current
'B Sense' wires can be
significantly smaller
than other wires.)
Fuse/
Breakers
(Low current wire)
Connect
close to
battery
terminals

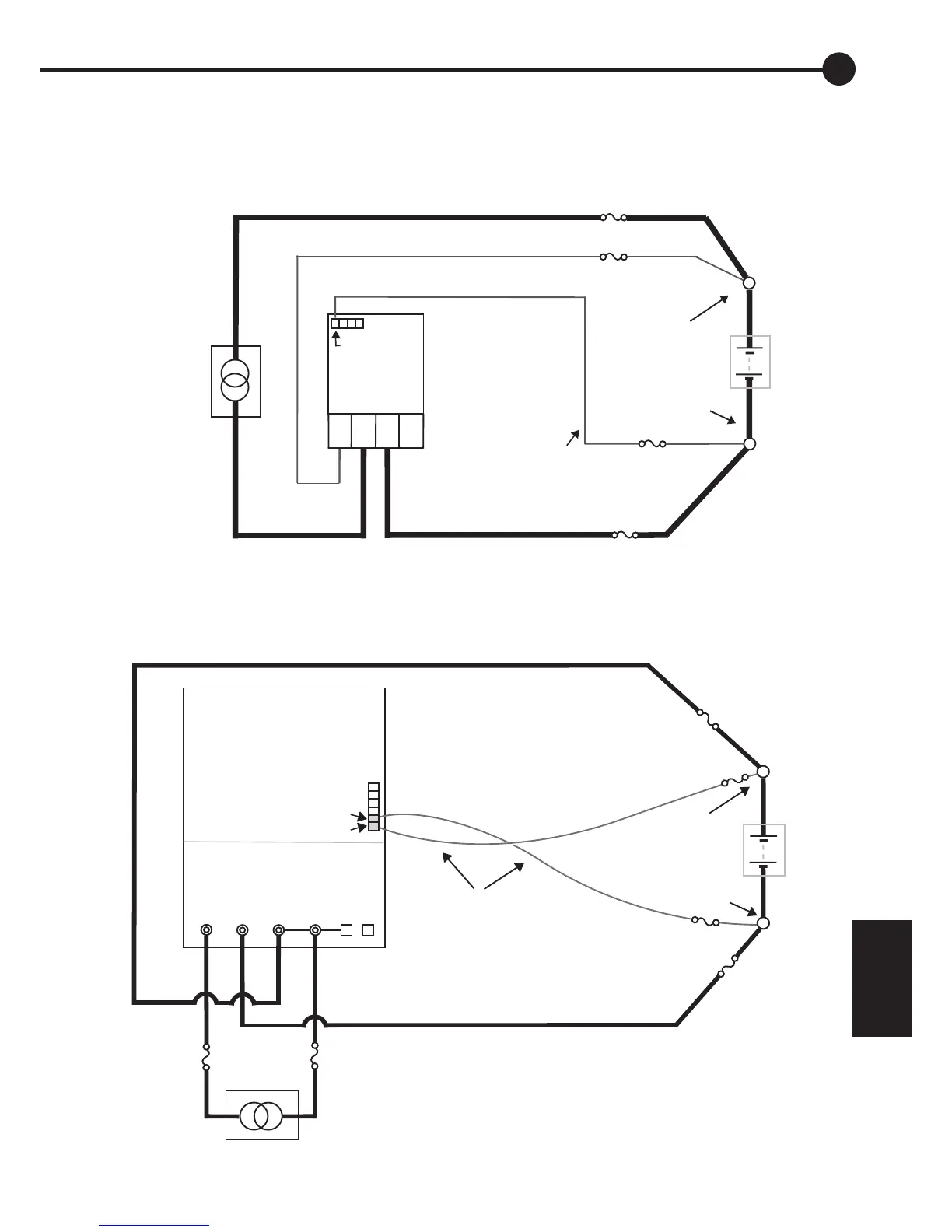

Fig. 7.5.3A - Battery Sense Input
Battery
+
-
Solar
Panel(s)
+
-
PL60/80
SOL- BAT- BAT+ SOL+ Load+ Load-
B- Sense
B+ Sense
Fuse/
Breaker
Low Current Wires
Connect
close to
battery
terminals
(NOTE: Low Current 'B Sense'
wires can be significantly smaller
than other wires. )
Fuse/
Breaker
Fuse/
Breaker
Fuse/
Breaker
Fuse/
Breaker
Fig. 7.5.3B - Battery Sense Input
