Plasson IGBT Dimmer - Mounting Instructions

| 3
Climate HousingDrinkingFeeding
Mounting Instructions
W-A
50 mm
(2”)
Ø 4 mm
(Ø 5/32”)

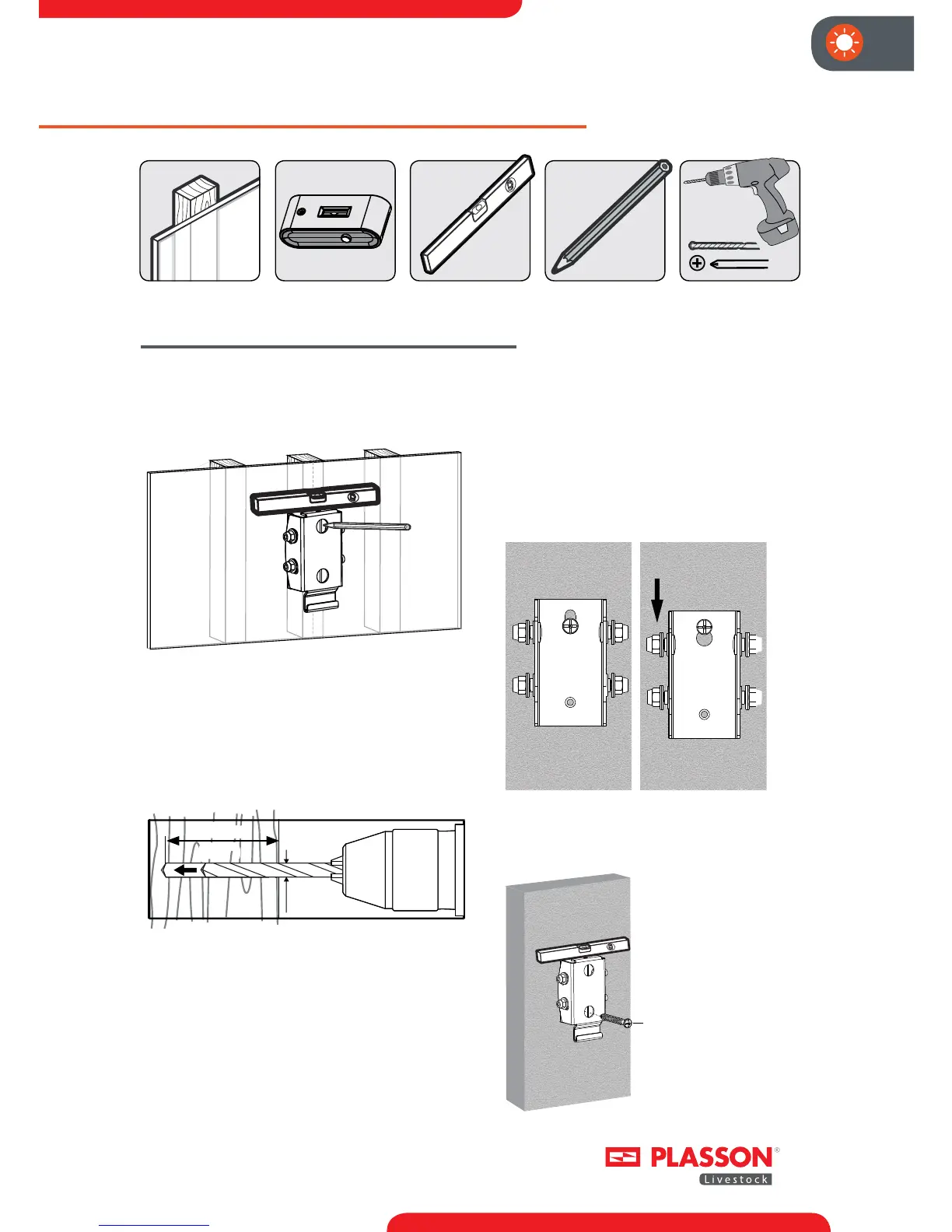

Step 1: Using a level, set the wall
mount against the wall and mark the
screw holes on the wall.
Step 2: Drill pilot holes into the wall if
necessary.
Step 3: Install screw into the wall and
tighten to within 3 to 5mm from the
wall
Step 4: Align the top hole of the wall
plate to the screw in the wall and lower
the wall plate until the screw is seated
in the upper area of the teardrop
mounting hole.
(For clarity, the outer cover is not
shown)
Step 5: Install the other screw and level
the wall plate, then tighten all screws
for security.
W-A
50 mm
(2”)
Ø 4 mm
(Ø 5/32”)
Installing the wall plate to the wall
W-A
50 mm
(2”)
Ø 4 mm
(Ø 5/32”)
W-A
50 mm
(2”)
Ø 4 mm
(Ø 5/32”)
