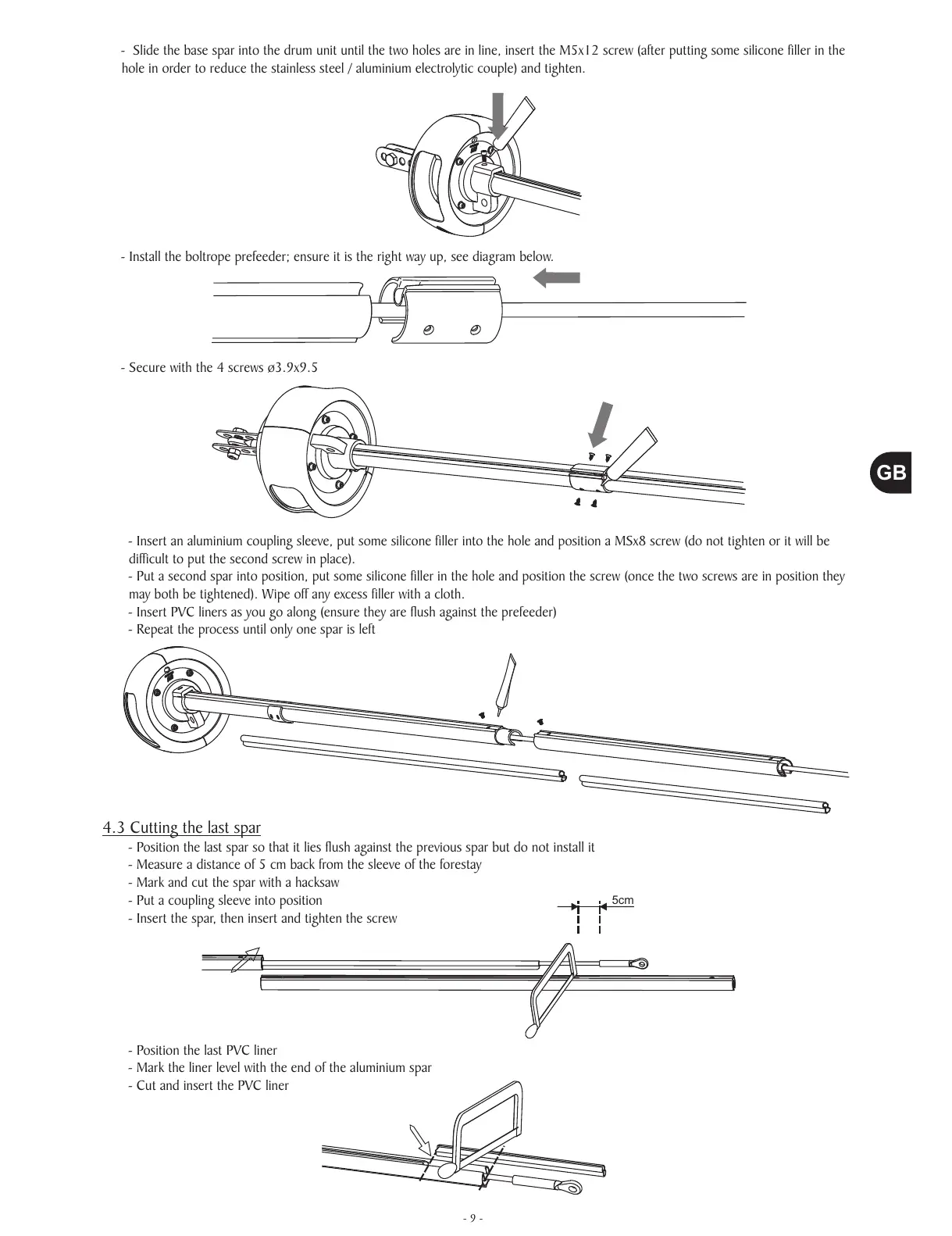

- Slide the base spar into the drum unit until the two holes are in line, insert the M5x12 screw (after putting some silicone filler in the
hole in order to reduce the stainless steel / aluminium electrolytic couple) and tighten.
- Secure with the 4 screws ø3.9x9.5
- Install the boltrope prefeeder; ensure it is the right way up, see diagram below.
- Insert an aluminium coupling sleeve, put some silicone filler into the hole and position a MSx8 screw (do not tighten or it will be
difficult to put the second screw in place).
- Put a second spar into position, put some silicone filler in the hole and position the screw (once the two screws are in position they
may both be tightened). Wipe off any excess filler with a cloth.
- Insert PVC liners as you go along (ensure they are flush against the prefeeder)
- Repeat the process until only one spar is left
4.3 Cutting the last spar
- Position the last spar so that it lies flush against the previous spar but do not install it
- Measure a distance of 5 cm back from the sleeve of the forestay
- Mark and cut the spar with a hacksaw
- Put a coupling sleeve into position
- Insert the spar, then insert and tighten the screw
5cm
- Position the last PVC liner
- Mark the liner level with the end of the aluminium spar
- Cut and insert the PVC liner
