AMPLIFIER FEATURES – REAR PANEL
This panel incorporates all the terminals for connecting the input signals from your preamplifier, and
output to the loudspeakers, and mains supply. A reasonable understanding of this amplifier’s operation
and a logical approach should ensure that you are able to make all connections with ease.
Please remember that your Plinius SA-103 Power Amplifier is a high quality electronic instrument capable
of an exceptional level of performance. Be sure that you understand your system’s requirements fully
before you make any connection to this amplifier or adjust the ACS (Amplifier Configuration Selector).
P

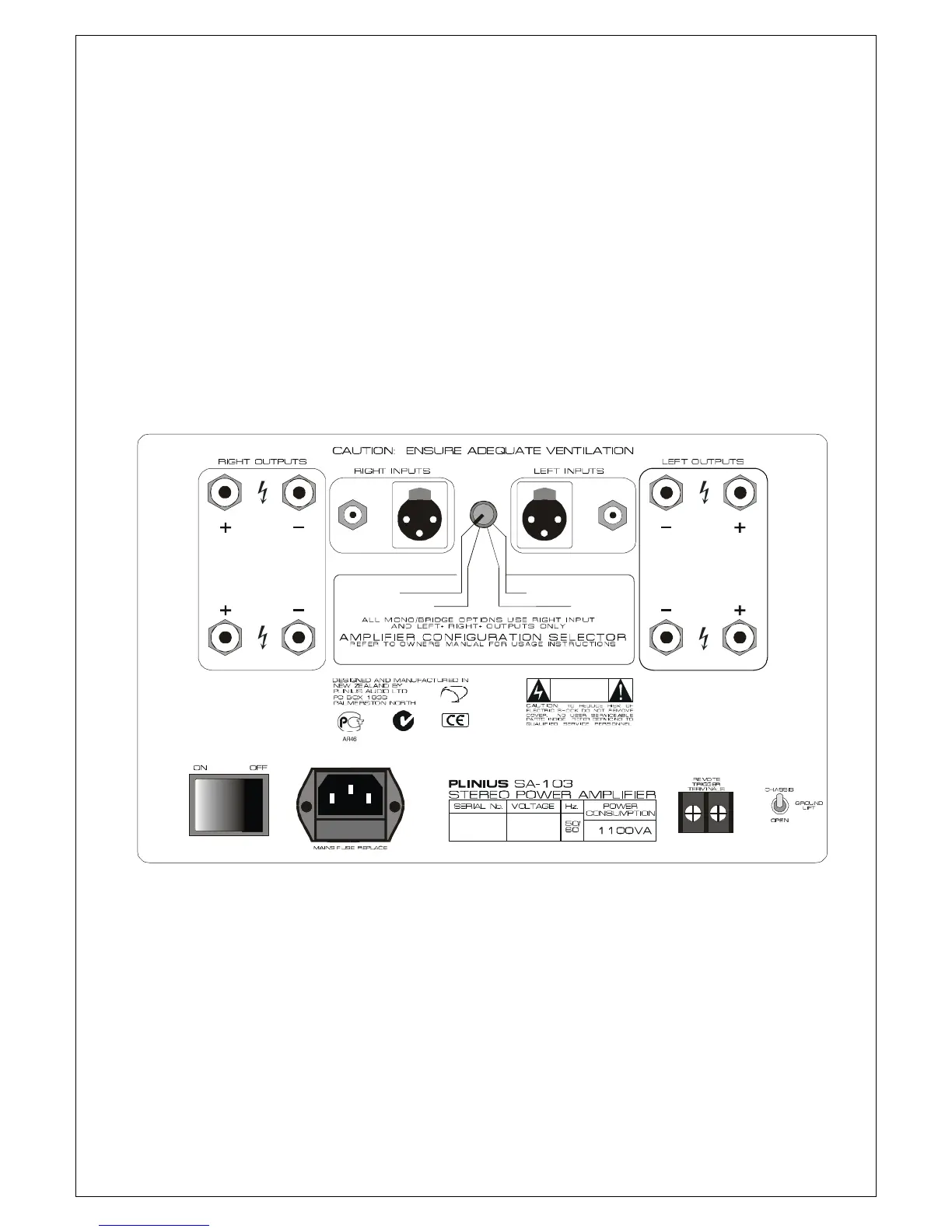

LINIUS SA-103 REAR PANEL SHOWING ALL THE AVAILABLE FACILITIES
I
NCLUDING INPUT AND OUTPUT TERMINALS, ACS (AMPLIFIER CONFIGURATION SELECTOR),
M
AINS INPUT AND GROUND LIFT.
