Plum MacR6 User Manual

Volume logger MacR6
Installation Manual
7

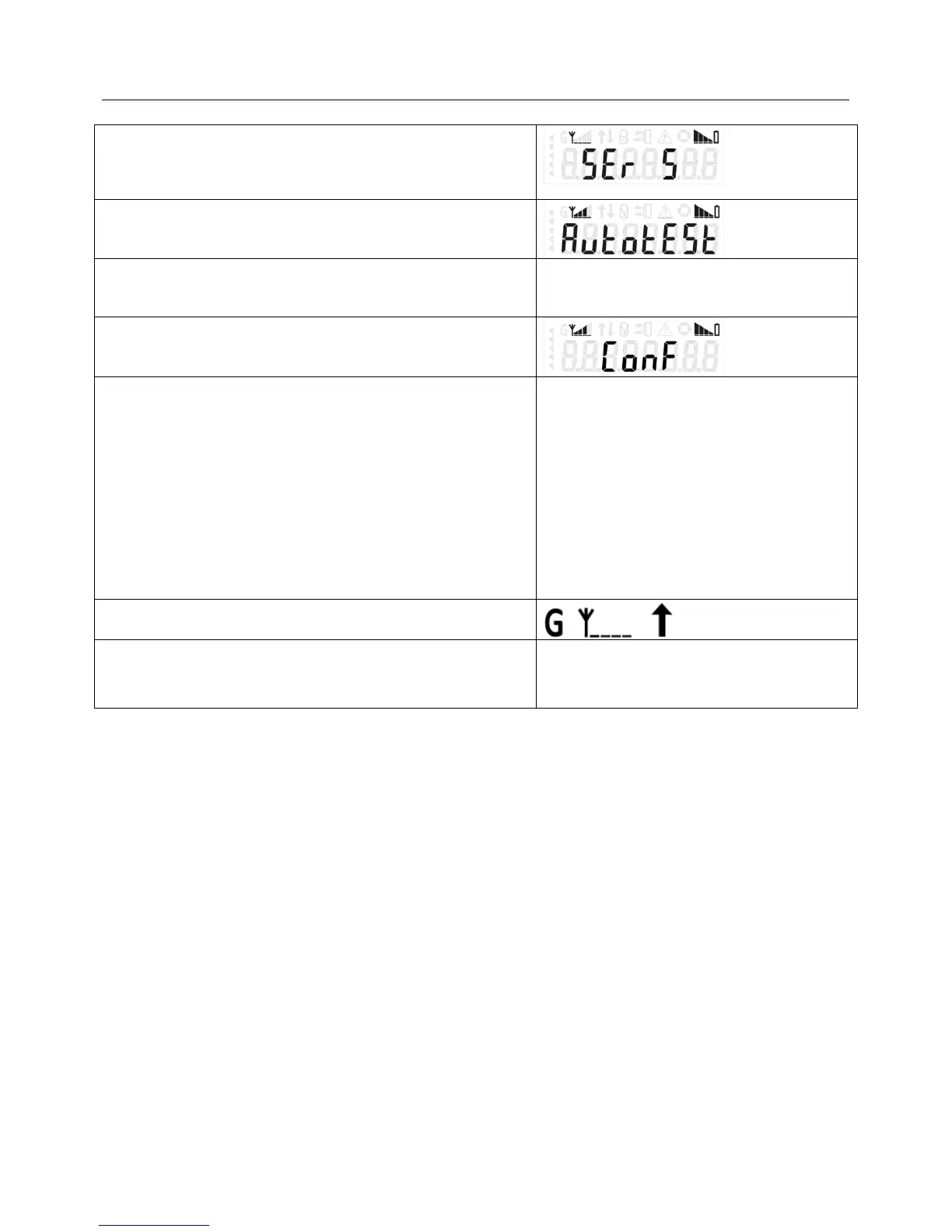

Operating steps:
Enable service option „SEr 5”. It is done by double touch of
magnet to Optical Interface connector. Detail info. About
service menu are available in previous part of this docu-
ment
Wait until device confirm possibility to receive of configura-
tion data. It will stay in this state for 5 minutes
Send SMS message with configuration data.
message, which modify value of counter
V:
K;4096;v=678.95
When device obtain configuration message with correct
format, it displays a note on the screen:
MacR6 replies with two messages – first with current data,
second with configuration data
sn – serial number
w – rate of the pulse
h – type of schedule (1 – everyday, 2 – once a week, 3 –
once a month)
g – reporting hour and end of the billing period
d – reporting day and end of the billing period
apn – apn name
asd – data server address
ntp – ntp server address
v – volume counter
Example response from device:
- configuration data
MacR6;sn=1000113295;w=100imp/m3;
r=7;h=1;g=12;d=14;apn=Internet;
asd=101.10.12.15:8003;ntp=101.10.12.15:
8003
- current data:
MacR6;sn=1000113295;ip=192.23.1.34;
v=76594.45m3;sygnal=20;
date=2013.08.01 12:10;
bat=75%;fv=H1.0.0_S001.03_V1307
Device will login to GPRS network (blinking icon “G”) and send
data from configuration to server (blinking icon “arrow up”)
After uploading data to server, on the telephone number from
which configuration message was sent, MacR6 will send a recap
of data to server transfer procedure
MacR6;sn=1000113295;sygnal=20;
GPRS=SUKCES;RAPORT=SUKCES
