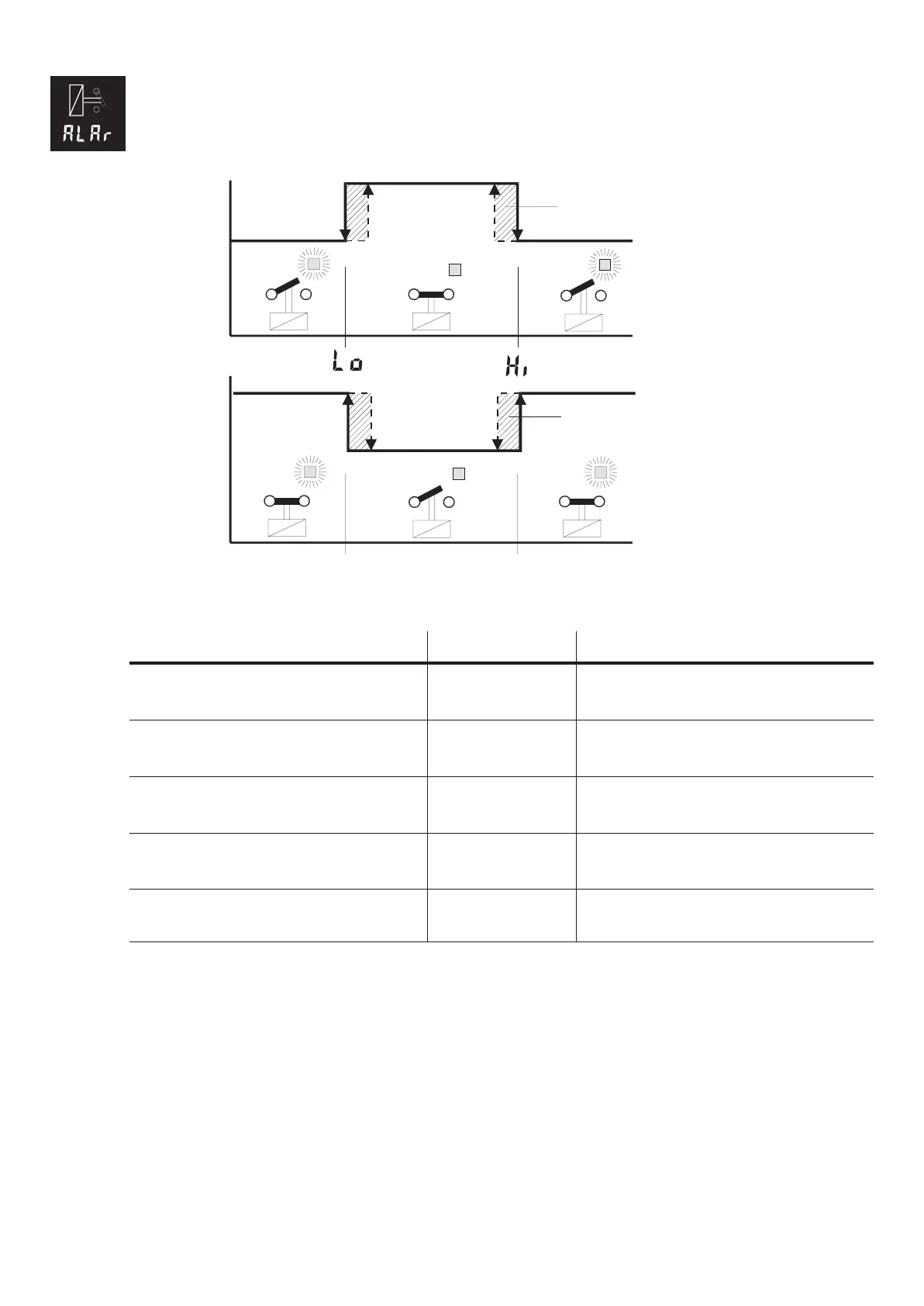

Two trigger points can be adjusted for each of the two relays L1 and L2.
When a trigger point is not required, it can be switched off. On versions
without relay, only the limit signalling LEDs on the instrument front are lit.
normally closed
normally open
Value for ... Value Reaction
L1_Lo L2_Lo
123.4 (e.g.) Alarm with input value <
123.4
L1_Hi L2_Hi
123.4 (e.g.) Alarm with input value >
123.4
L1_HI L2_HI 99999
Alarm only with sensor break
and up-scale configuration
L1_Lo L2_Lo -9999
Alarm only with sensor break
and down-scale configuration
L1_Lo L1_HI
L2_Lo L2_HI
----
Trigger point not used
When using a Digital 380 channel selector in the automatic scan mode
(SC_on), the built-in relays are used for common alarm signalling, i.e. the
corresponding relay switches with at least one alarm in the measured
channels.
In this case, the mode (normally open or normally closed) is dependent of
the channel 1 setting.
9499-040-24701 13
OPEn
CLOSE
HYST
HYST
Hi
Lo
LED
LED
LED
LED
LED
LED
