PMC Pm25LV512/010
PACKAGE TYPE INFORMATION (CONTINUED)
8Q

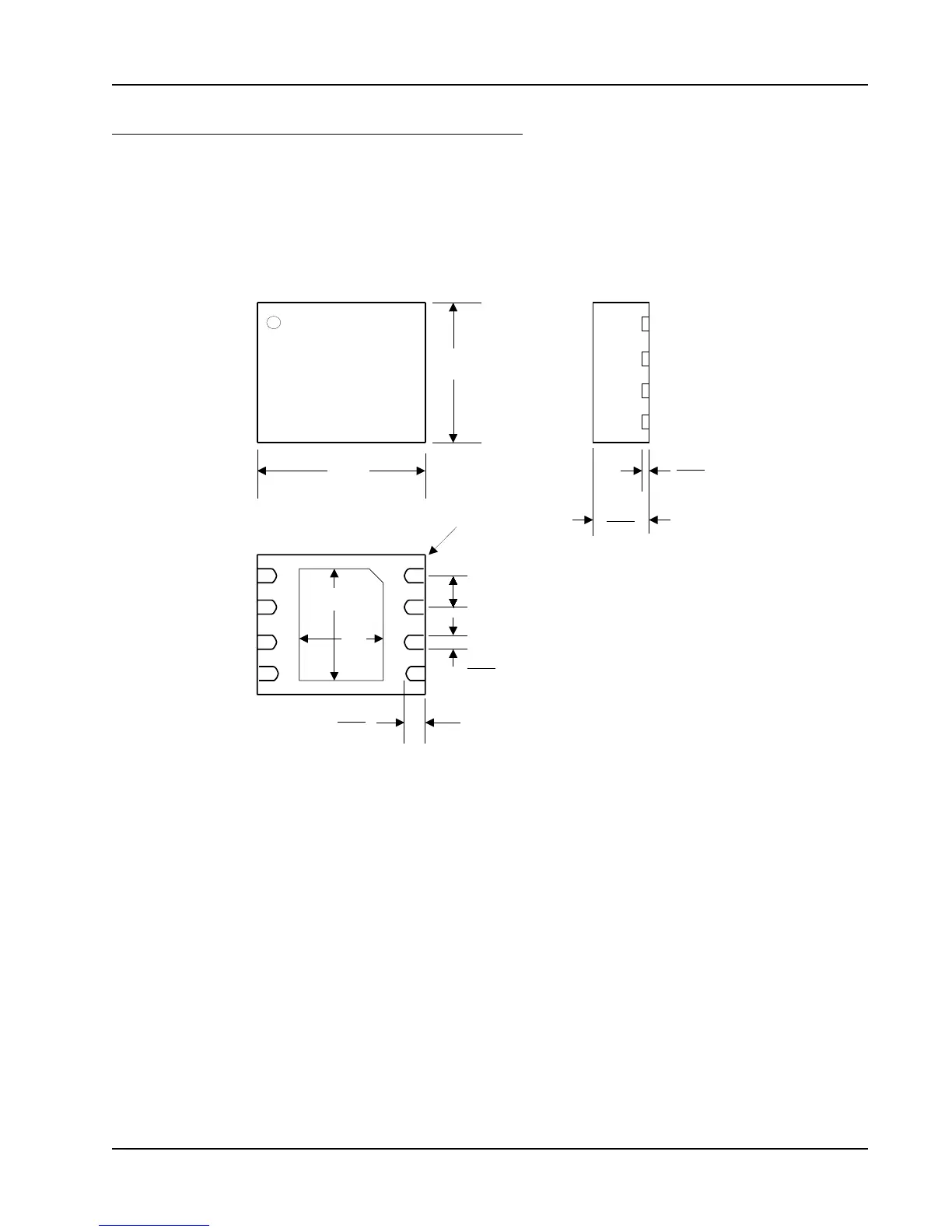

8-Contact Ulta-Thin Small Outline No-Lead (WSON) Package (measure in millimeters)
5.00
BSC
Top View
Side View
0.48
0.35
6.00
BSC
0.80
0.70
0.25
0.19
1.27
BSC
Bottom View
Pin 1
0.75
0.50
4.00
3.40
