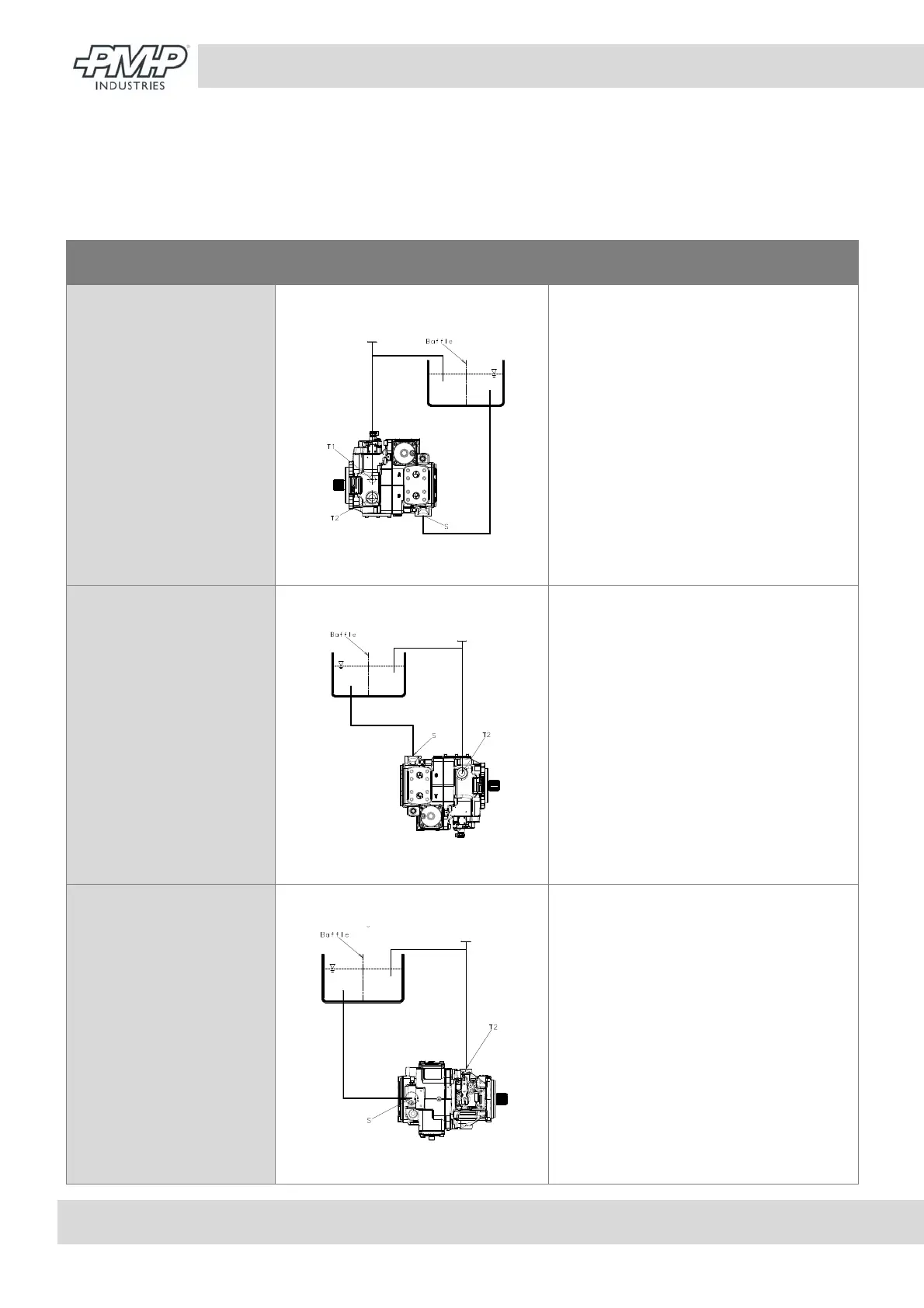

5.3)InstallazionePMHP 5.3)PMHPinstallation
Installazione sottobattente. la pompa è installata
al di sotto del livello minimo di fluido del
serbatoio
Below tank installation: pump is installed below
theminimumfluidlevelofthetank
Posizionamento
Positioning
Orientamentodellapompa
Pumporientation
Note
Notes
Alberoorizzontale
Servocomandoinalto
Utenzelaterali

Horizontalshaft
Controlupwards
Servicelinesonside

 La linea di drenaggio deve essere
collegata alla porta posizionata più
inalto

 The case drain line must be always
connected with the drain port
positionedinthehighestposition
Alberoorizzontale
Servocomandoinbasso
Utenzelaterali

Horizontalshaft
Controldownwards
Servicelinesonside

 La linea di drenaggio deve essere
collegata alla porta posizionata più
inalto

 The case drain line must be always
connected with drain port
positionedinthehighestposition
Alberoorizzontale
Servocomandolaterale
Utenzeverticali

Horizontalshaft
Controlsonside
VerticalServicelines

 La linea di drenaggio deve essere
collegataallaportapostapiùinalto

 The case drain line must be always
connected with drain port
positionedinthehighestposition
