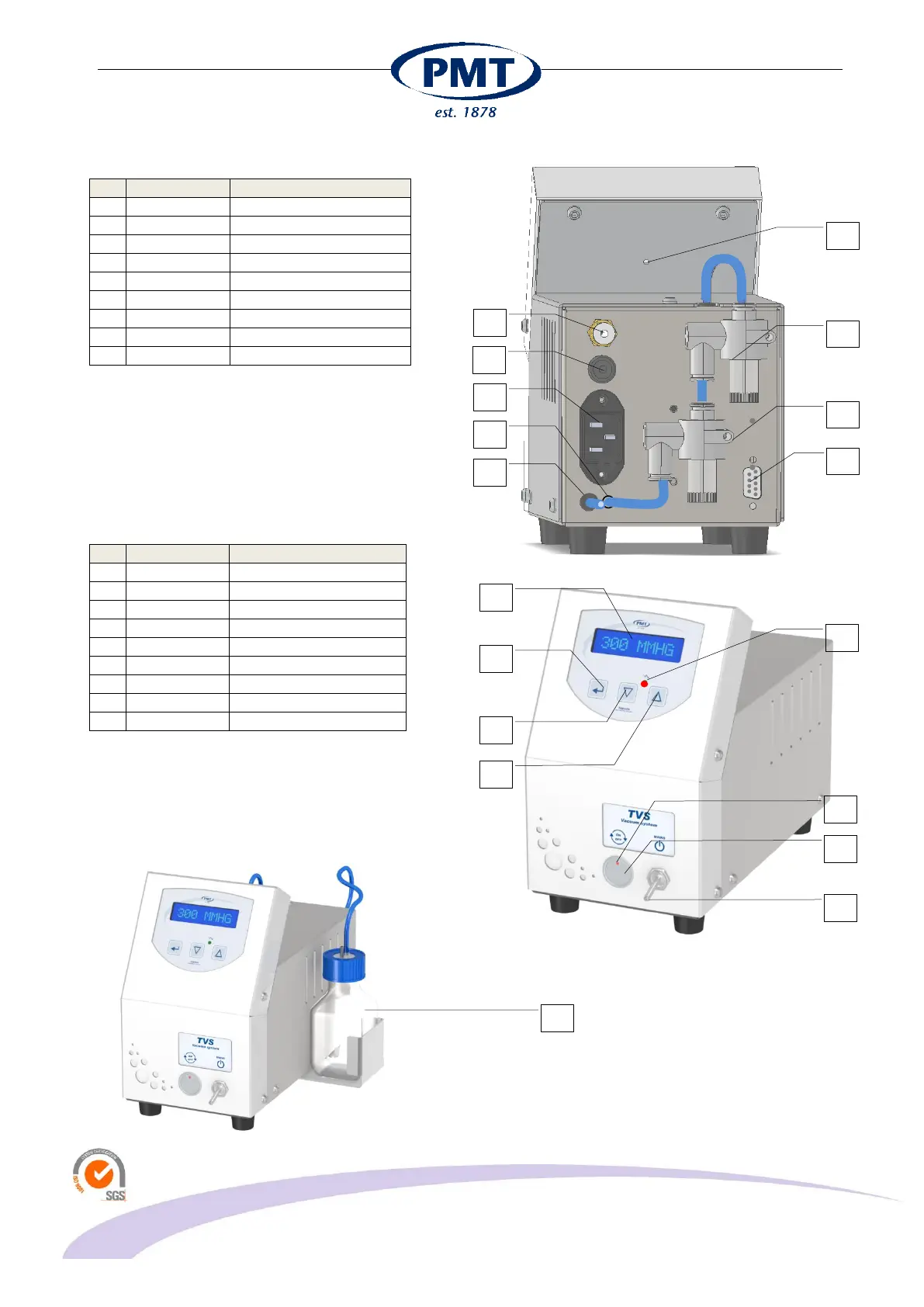

5 What is what
Item
Description
remark
A
Vacuum inlet
Connect to manifold
B
Motorfuse
C
Mains entry
85 .. 230V (47..63Hz) in
D
Connection
To vacuum trap
E
Outlet
“+” pressure out
F
Hole
Press for calibration
G
Vacuum trap
“I“
H
Vacuum trap
“II“
I
RS232
Optional
Item
Description
remark
1
Display
2
Key “enter”
3
Key “down”
4
Key “up”
5
LED “set”
Vacuum set to memory
6
LED Motor
Pump stopped/running
7
Switch pump
8
Unit on/off
9
Fluid trap
Optional
F
I
C
E
D
H
A
G
B
1
2
3
4
7
5
6
8
9
