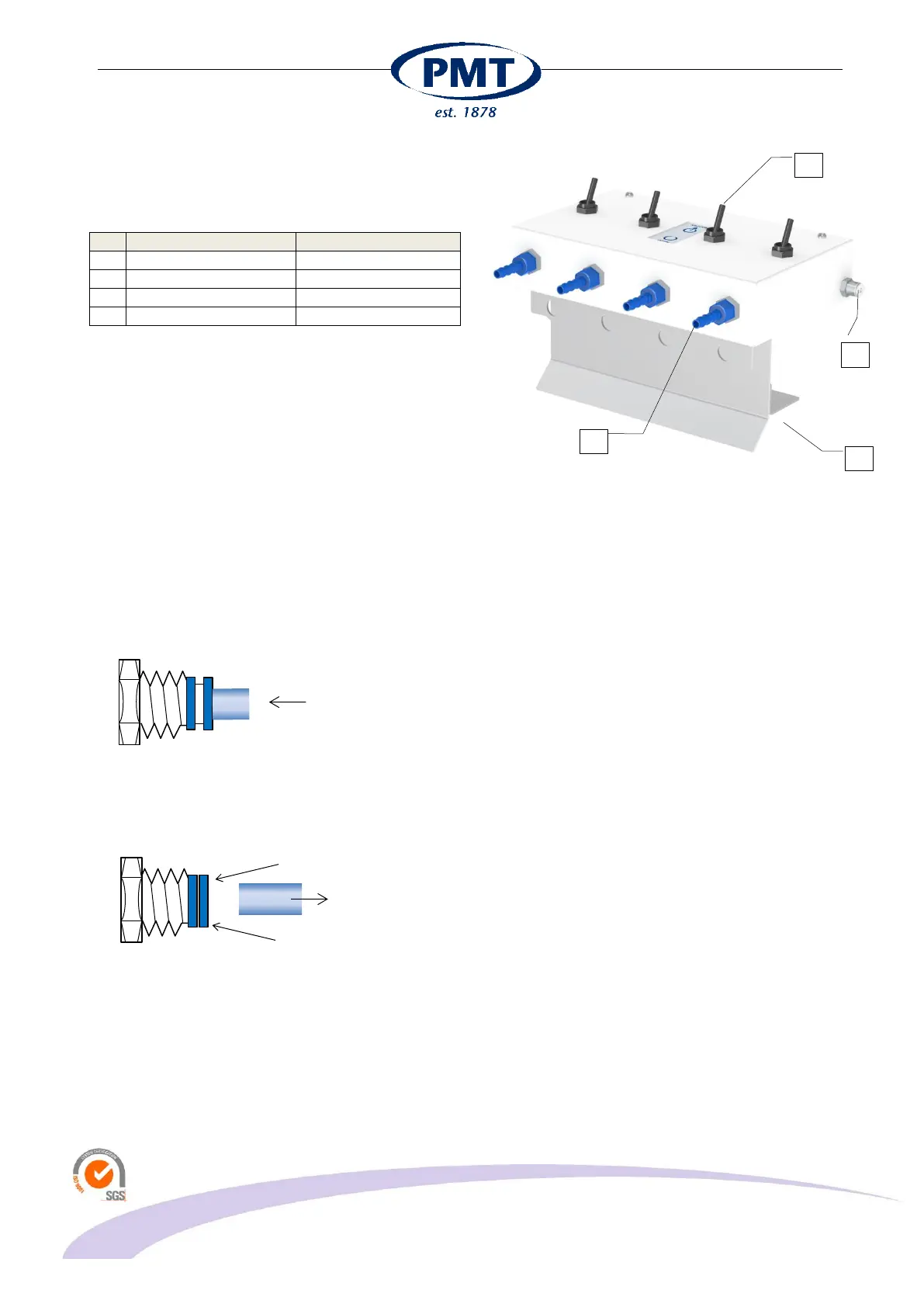

8 Manifold
Item
Description
Remark
1
Toggle switch (4x)
To front is open
2
Connector 4mm
To TVS
3
Hose connector (4x)
To viscometer tube
4
Mounting holes
When the toggle switch is backwards, vacuum is applied
to the hose connector (3). When the toggle switch is
positioned towards the hose connector the connector (3)
is atmosperical.
As an option other toggle switches can be mounted. These offer
vacuum (backwards) or closed when positioned to the front.
8.1 Quick release
The TVM is connected to the vacuum system with a 4mm poly urethane hose. A quick release system
combines ensures operation with a simple connection.
To connect simply press the hose into the connector (2)
To unconnect press (B) the connector (2) and pull the hose out (C)
A
B
C
2
4
3
1
