Pub. No. OM-A-10H REV. 7 — June 2006 17

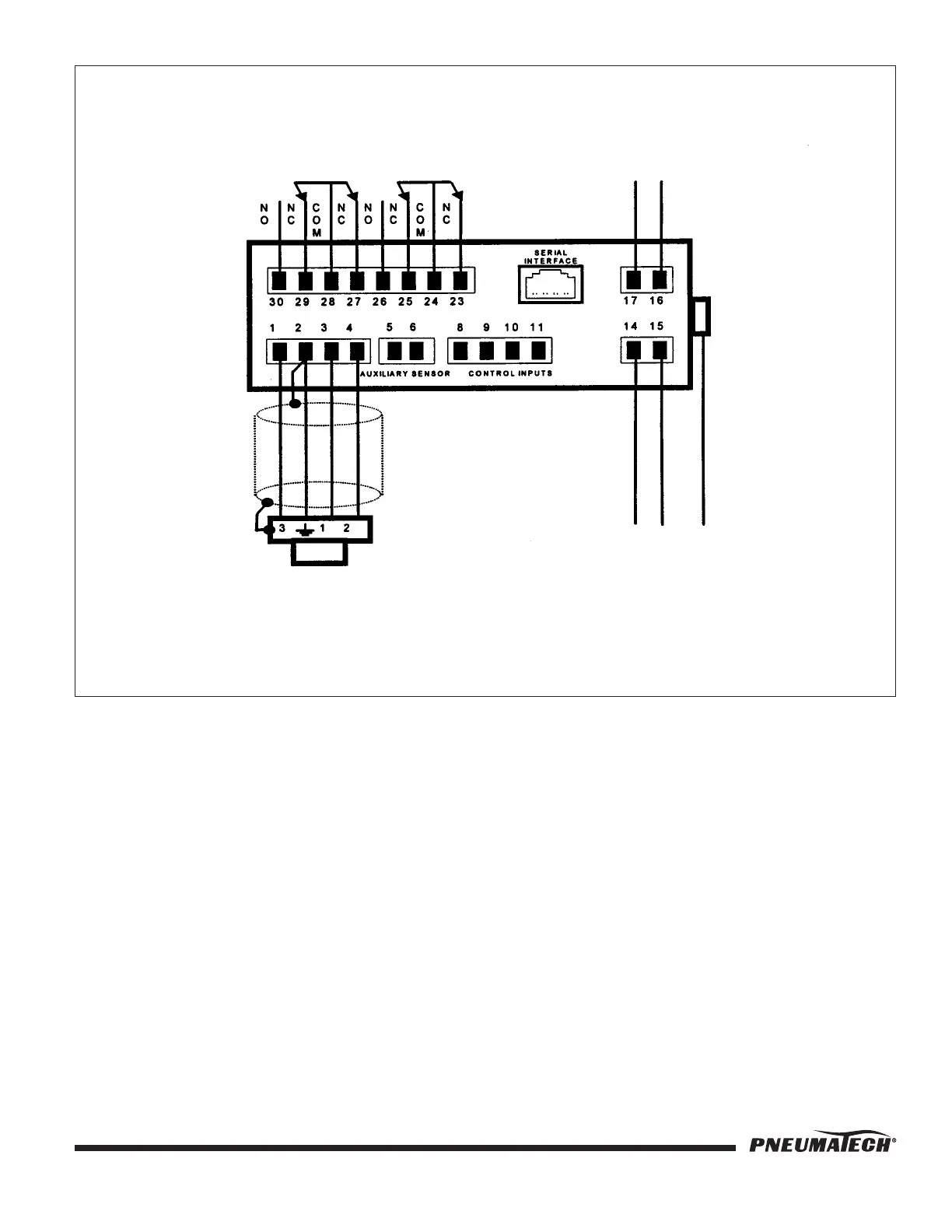

FIGURE 6 — DEWPOINT DISPLAY CONTROL WIRING
-+
RELAY
SP 1
RELAY
SP 3
RELAY
SP 2
RELAY
SP 4 (OS)
ANALOG
OUTPUT
DEWPOINT SENSOR POWER
G
NL
-+
