PNI DK110 - Connection Diagrams

5 - User manual
Violet COM Common connector
Orange NC
NC connector (normally
closed)
Pink BELL_A Door bell terminal
Pink BELL_B Door bell terminal

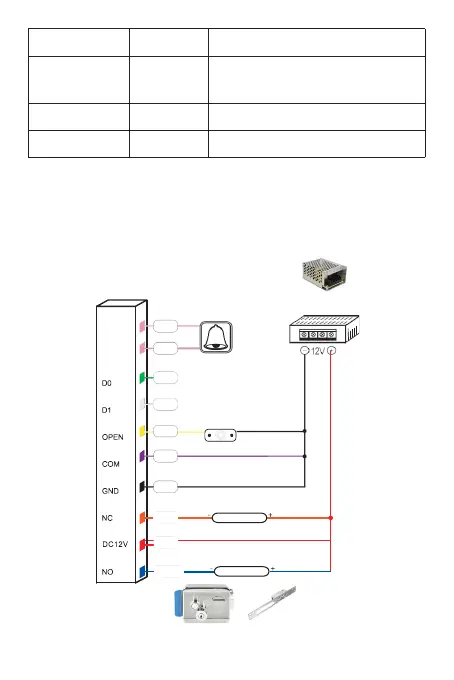

Connection diagram
1. Common power supply
Pink
Pink
Door bell
Power supply
(eg. PNI ST3.4A)
Green
White
Yellow
Purple
Black
Access button
Fail Safe Electromagnet
Fail Secure electric lock
BELL_A
BELL_B
Blue
Silvercloud YE910
Silvercloud YS810
Orange
Red
