3.4 Dimensions, Packaging, and Pad & Mask Layout

3.4.1 Sen-XY-f

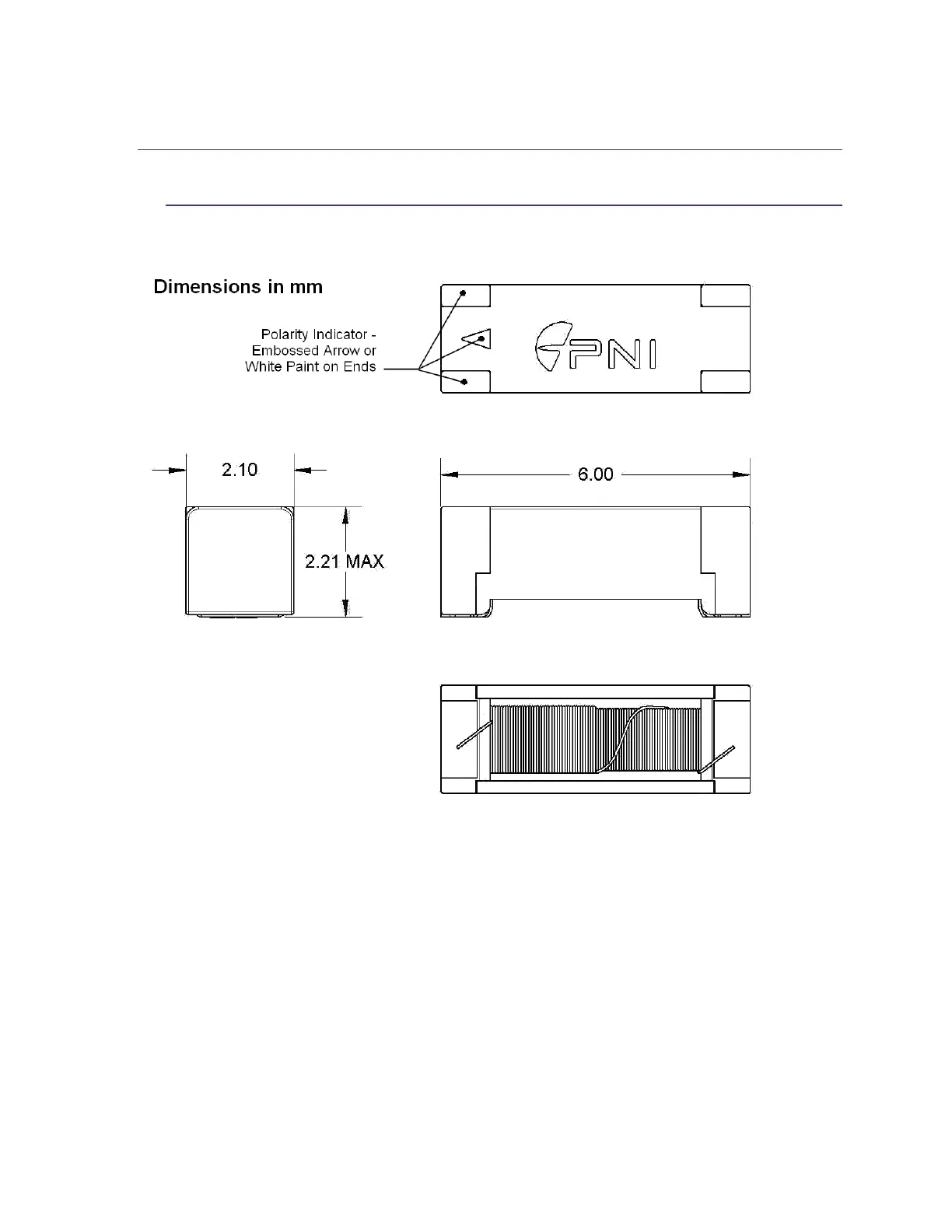

Figure 3-1: Sen-XY-f Sensor Dimensions
