IQ Rear Suspension Adjustments
Initial Spring Preload Setting (Sag Method)

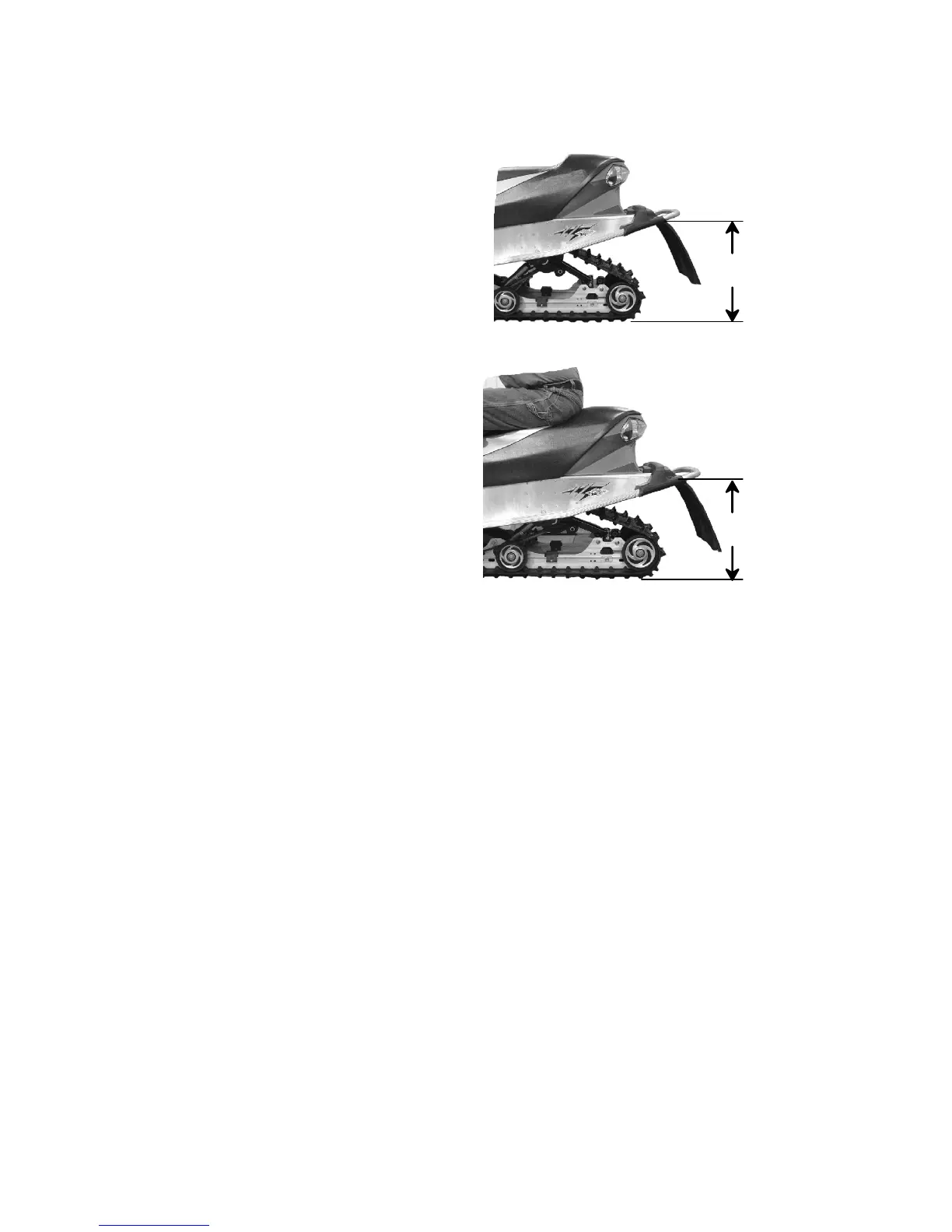

To set up the IQ rear suspension
torsion spring preload, measure the
distance between the ground and rear
bumper. This is measurem ent X.
Take the first measurement with no
rider and with the rear suspension at
full extension.
NOTE: The rear bumper may need
to be lifted upward slightly
to fully extend the rear
suspension.
Next, have the rider drop down hard
on the seat and bounce up and down
several times, collapsing the rear
suspension. With the rider seated,
measure the distance between the
ground and the rear bumper at the
exact location used for measurement
X. This is measurement Y.
To determine sag, commonly referred to as ride-in, subtract
measurement Y from X (Sag=X-Y). Adjust sag by rotating the torsion
spring preload cam s located on the rear torque arm. Use the illustration
or the decal found under the hood for reference. The ideal amount of
Sag for the IQ rear suspension is two inches (X-Y=2).
If the rear suspension rides in less than one inch or more than three
inches with the t orsion spring preload cams at their maximum range of
adjustment, optional torsion springs (softer or stiffer, respectively) may
be required. This is only an initial setup, and final spring prel oad m ay
vary based on rider preference and riding conditions.
