96
MAINTENANCE

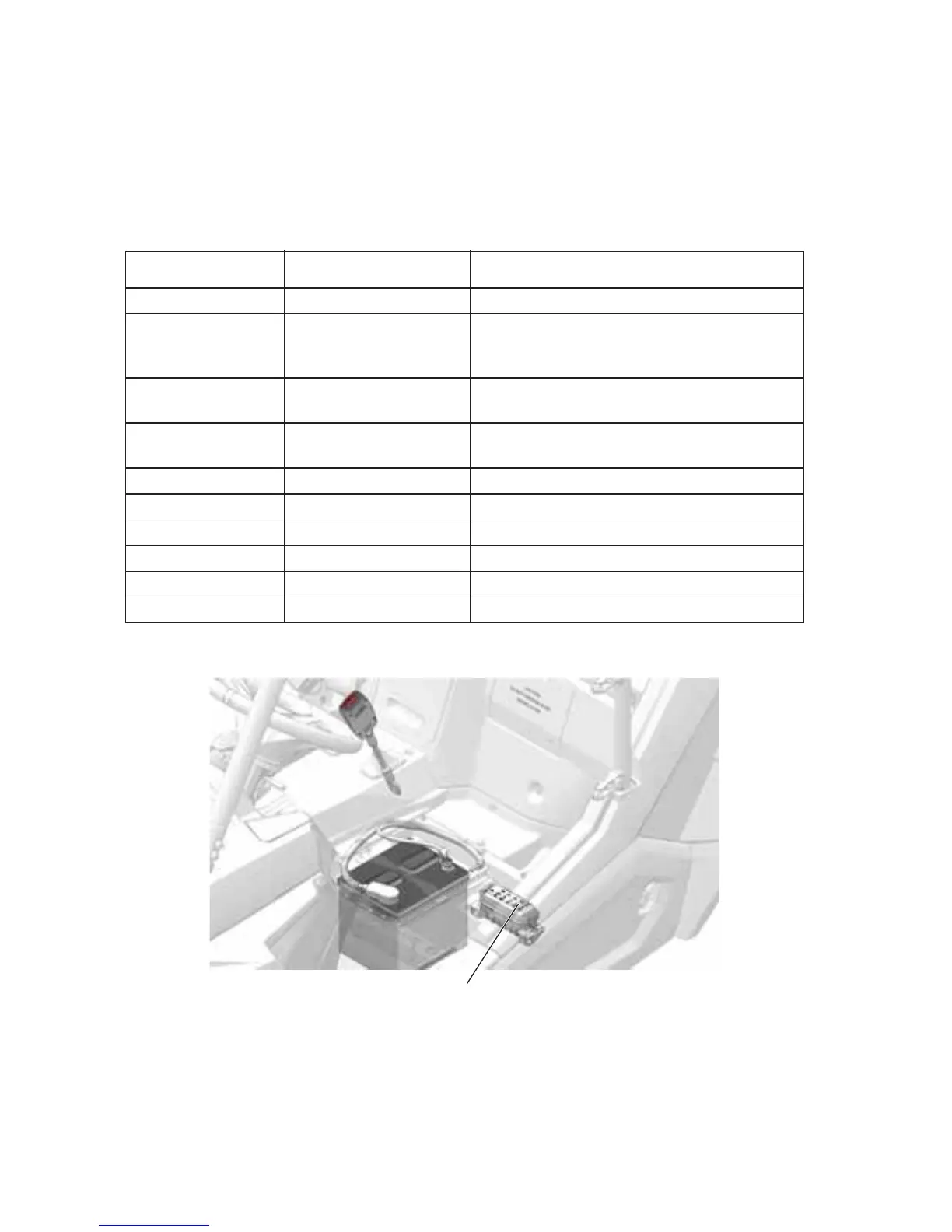

Fuse/Relay Center
If the engine stops or will not start, if the power steering stops working
(if equipped), or if you experience other electrical failures, a fuse may
need replacement. Locate and correct any short circuits that may have
caused the blown fuse, then replace the fuse. The fuse/relay center is
located under the driver’s seat.
Label Value Function
FAN 30A Circuit Breaker Fan
EFI 10A Fuse EFI Relay, Injectors, Coil, ECM,
Chassis Relay Coil, Fan Relay Coil,
Fuel Pump Relay Coil
KEY 10A Fuse Gauge, EFI Relay Coil, EPS Relay
Coil, Key Switch
TERM 10A Fuse Under Hood Terminal Block, Interior
LED
FUEL 10A Fuse Fuel Pump
EPS 20A Fuse Power Steering
LIGHTS 15A Fuse Headlights, Taillights, Dash Lights
DRIVE 10A Fuse All Wheel Drive (AWD)
ACCESSORY 10A Fuse 12V Receptacle
WATER 10A Fuse Water Pump
Fuse Box
