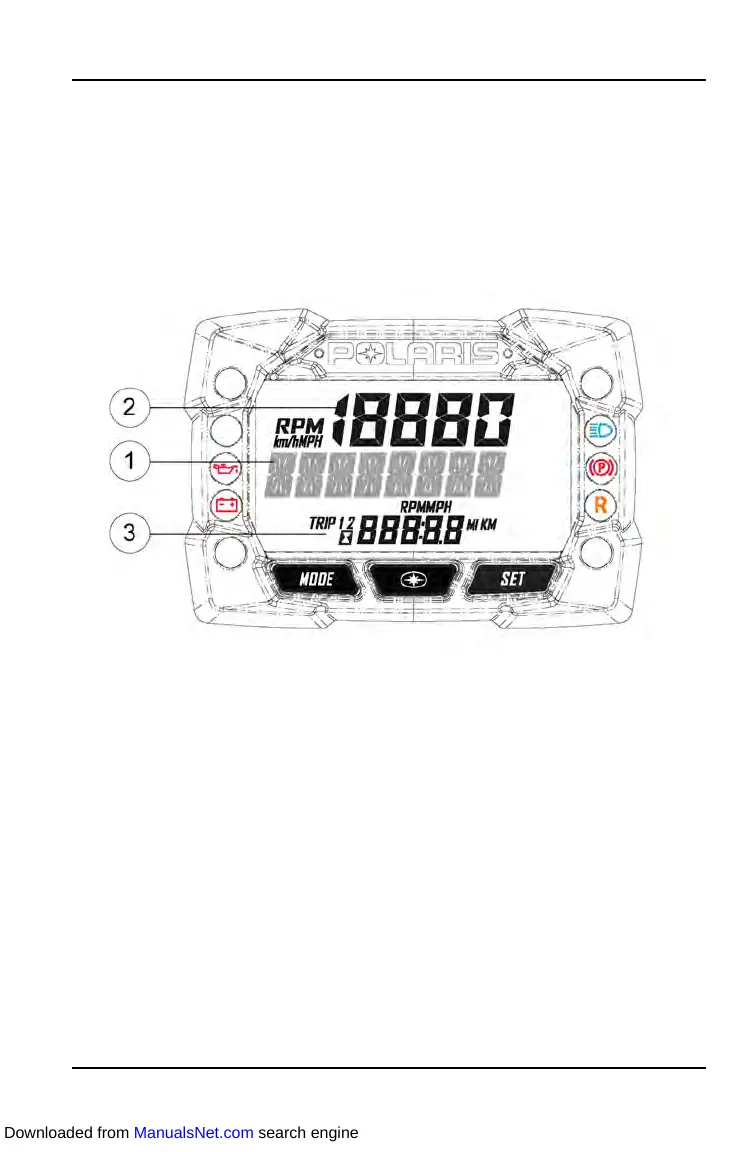

RIDER INFORMATION CENTER
The rider information center is located in the instrument cluster. The center
displays vehicle speed, engine speed, odometer, resettable trip meters (2), total
engine hours of operation, fuel level, engine temperature and diagnostic display
mode.
Setting changes must be made with the engine running or with the vehicle
powered by an external DC power supply connector. The information center is
set to display standard units of measurement for distance and temperature.
q
Information Display Area - This area displays either engine speed or vehicle
speed (whichever is not displayed in the speed display), and maximum vehicle
speed.
w
Speed Display - The speed display area displays either vehicle speed or
engine speed.
e
Odometer/Engine Hour Display - This area displays the odometer, Trip A,
Trip B and engine hours.
31
GAUGE
